ECO-WORTHY PowerMega 314 | 51.2V 314Ah LiFePO4 Home Backup Battery with 5kW Inverter

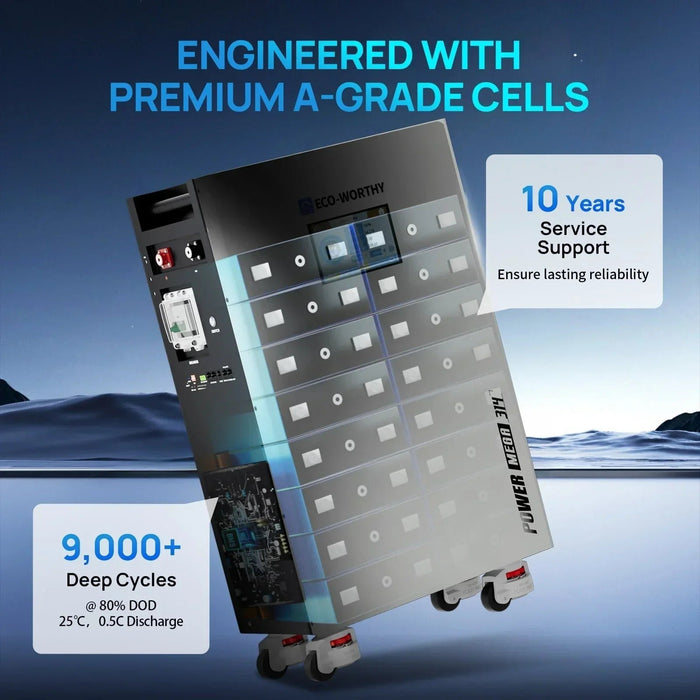

51.2V 314Ah LiFePO4 Home Backup Battery

Battery Capacity: 314Ah	Battery Power: 16.08kWh
Rated Voltage: 51.2V	Voltage Range: 40~58.4V
Maximum Charge/ Discharge Current: 200A	Charge Temperature Range: 0-55℃
Disharge Temperature Range:﹣20－55℃	Maximum Charge Voltage: 58.4V
Battery Weight: 279.99Ib/127kg	Battery Size: 33.1319.6910.24in/84.155026cm
Standard charge current:150A	Standard discharge current:150A
Max.charge current:200A	Max. discharge current:200A(initial temp.≤35 C)
Max. parallel number:15pcs	Model No:ECO-LFP4831400

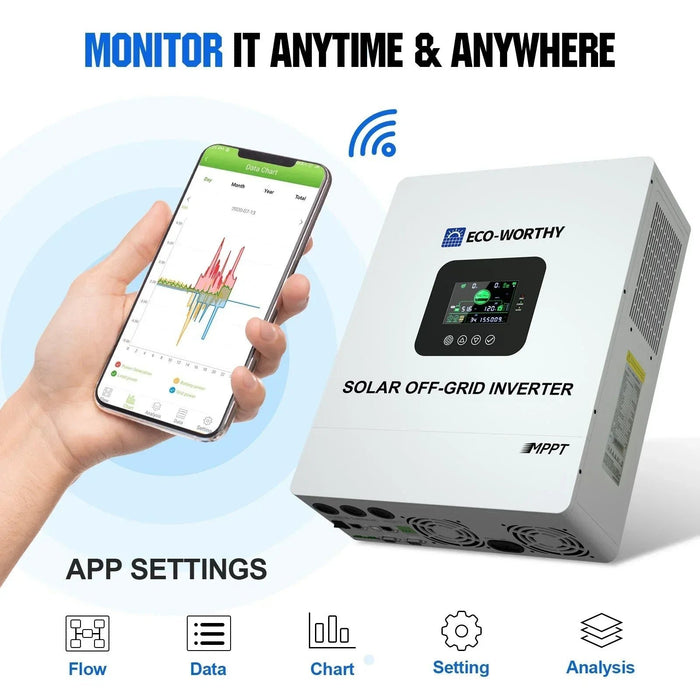

5kW 48V Off Grid All-in-one Inverter

AC Input
Rated Input Voltage: 110/120VAC	Input Voltage Range: 90V-140VAC
Frequency: 50Hz/60Hz(auto detect)	Overload/Short Circuit Protection: Circuit breaker
Efficiency: >95%	AC Reverse Protection: Available
Max Bypass Overload Current: 40A
Inverter
Output Voltage Waveform: Pure Sine Wave	Rated Output Power: 5000W
Rated Output Voltage: 120VAC	Peak Power: 10000W
Bypass Breaker: 63A	Rated Battery Input Voltage: 48V
Min Starting Voltage: 44V	Power Saving Mode: Load ≤25W
AC Charging
Battery Type: Lead acid or lithium battery	Max Charge Current: 60A
Charge Voltage Range: 40-60VDC	Overcharge Protection: Alarm and turn off charging after 1 minute
PV Charging
Max Input Power: 5500W	PV Charging Current Range：0-80A(can be set)
Max PV Open Circuit Voltage: 500VDC	PV Operating Voltage Range: 120-450VDC
MPPT Voltage Range: 120-450VDC	Battery Voltage Range: 40-60VDC
	Charging Short Circuit Protection: Blown fuse

Package included:

1 x 5kW 48V All-in-one Inverter
1 x 51.2v 314ah battery
1 x 51.2v 314ah battery manual
1 x Battery to Inverter communication cable(1500mm)

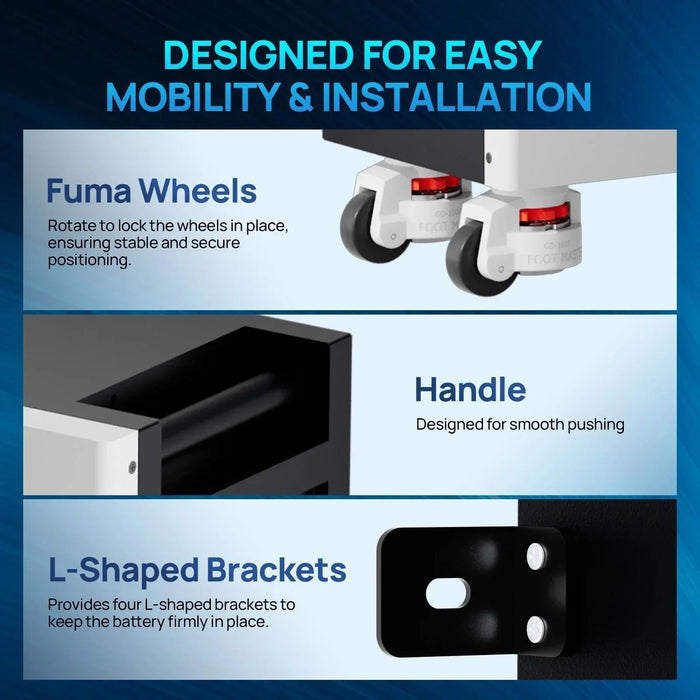

1 Group Of Wall-mounted Bracket
1 Pair Of Battery to Busbar cable(2AWG 1500mm Black)

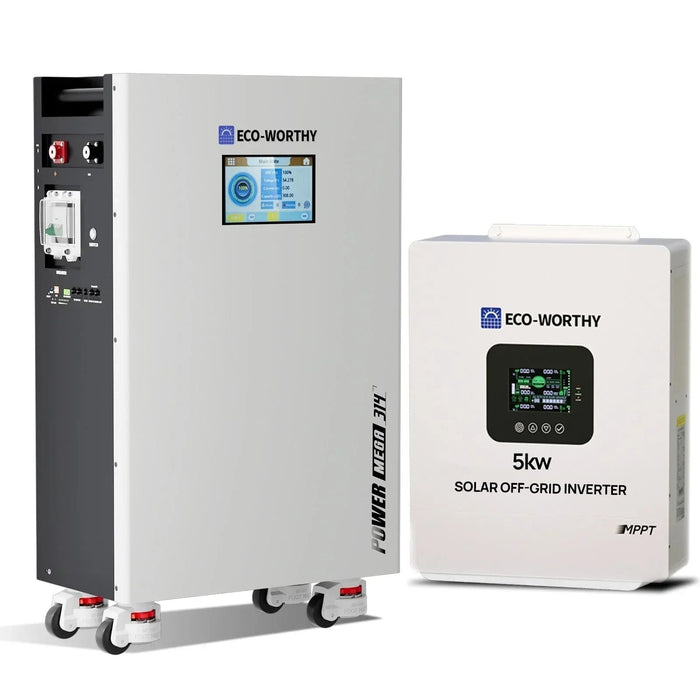

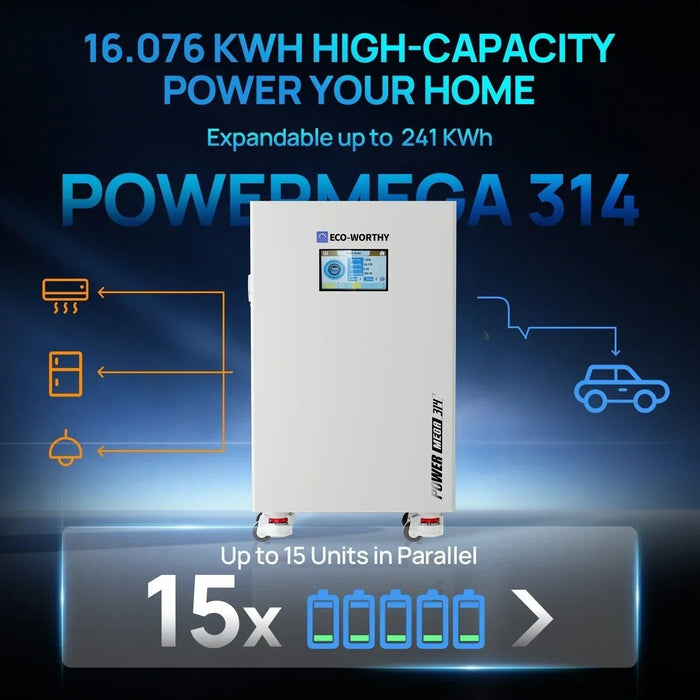

Eco-Worthy 5kW Home Backup Solar Power Bundle | 51.2V 314Ah Battery and 48V 5000w Off Grid Inverter
