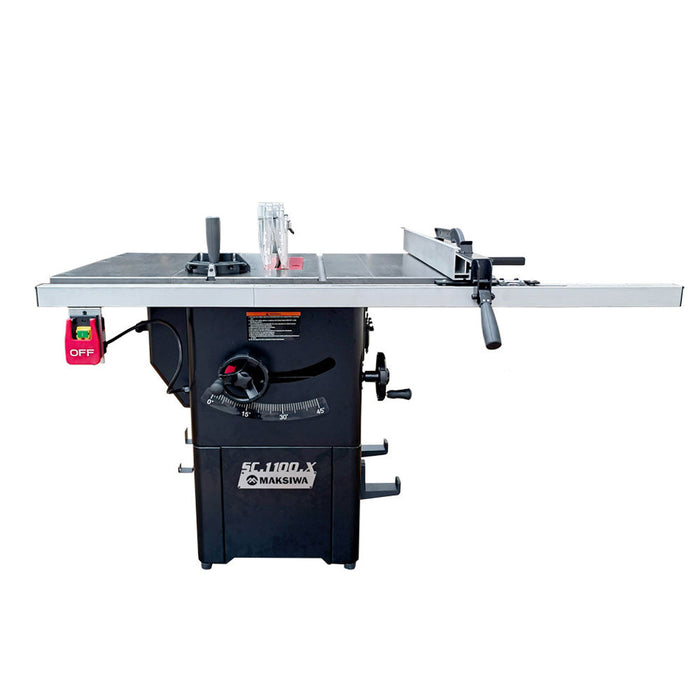

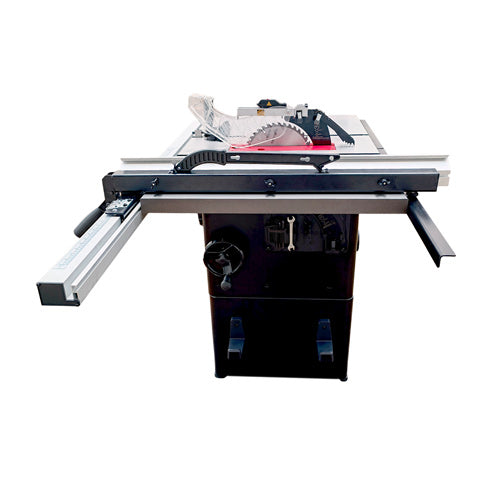

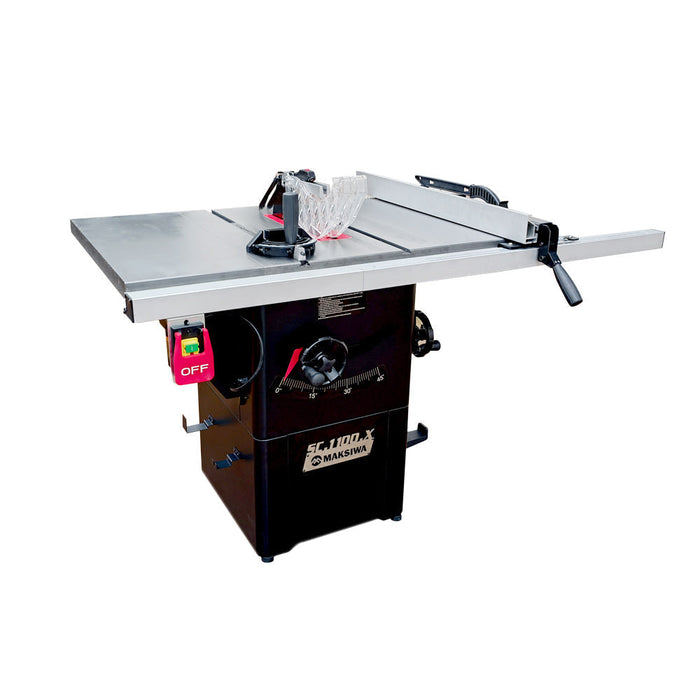

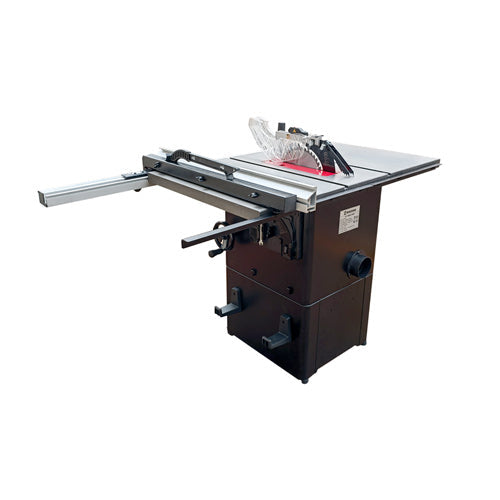

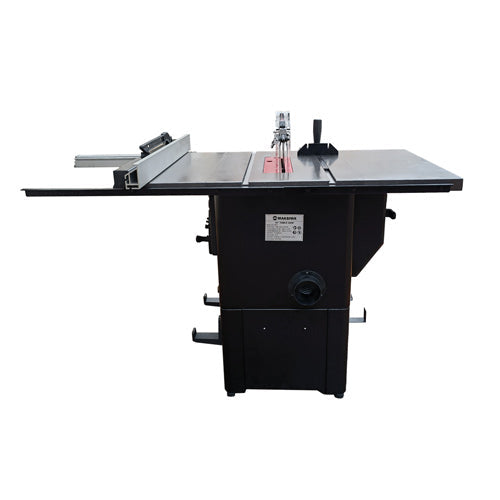

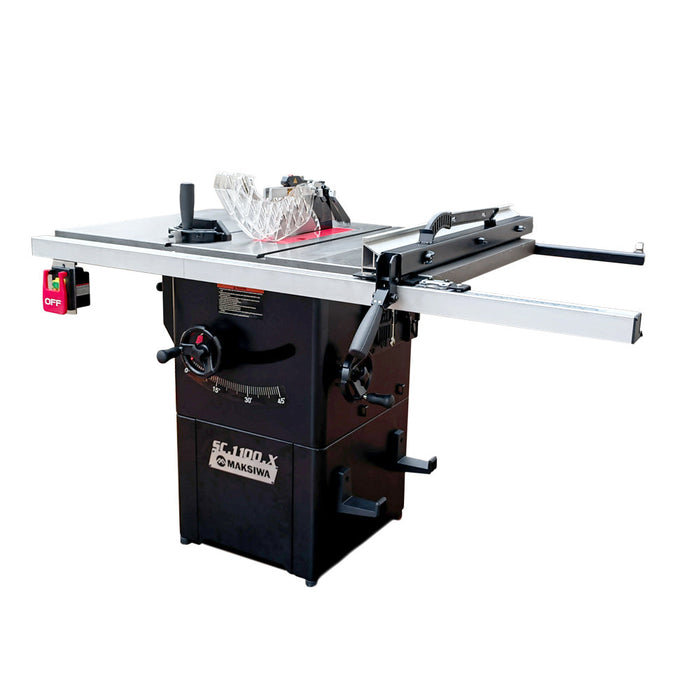

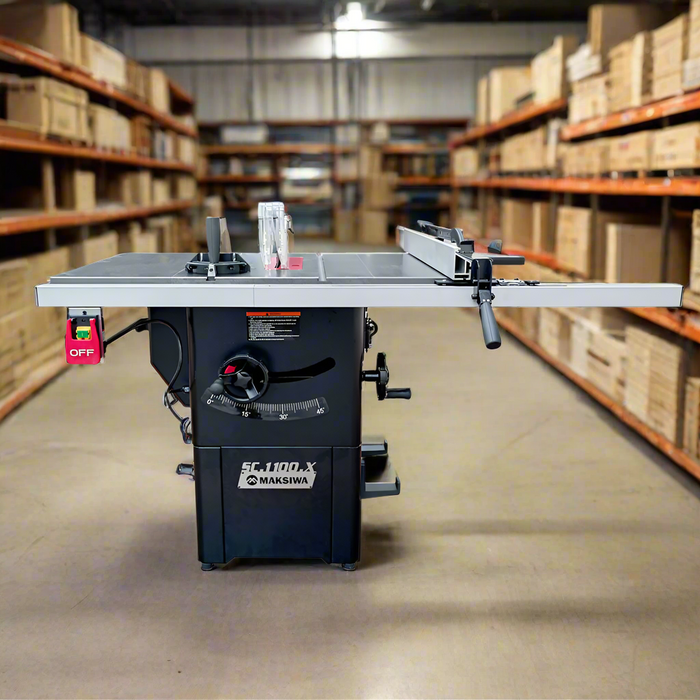

Maksiwa 10'' Cabinet Table Saw 2.5HP SC.1100.X

Product Description

The Maksiwa SC.1100.X Cabinet Saw was designed to accommodate the needs of the demanding woodworker. Constructed with premium materials and superior quality components this saw is incredibly precise and durable. It has a powerful 2.5HP 1PH 220V Motor, Extra-Large Cast-Iron Table, Heavy-Duty Precision Rip Fence and includes a 10” 40-tooth carbide-tipped blade. Equipped with laser guide for extra accuracy, clear blade guard with riving knife splitter and anti-kickback feature. It also has an Integrated 4” Dust Port, ships with a Miter Gauge, Push Stick and blade removal tool.

Features

1 phase 220V 8A 60Hz 2.5HP 1.8Kw Motor
Extra Large Cast-Iron Table
Heavy-Duty Precision Rip Fence
Front Rail is calibrated in Inches and Millimeters
Totally Enclosed Cabinet
Integrated 4” Dust Port
Clear blade guard with riving knife splitter and anti-kickback feature.
Includes a 10” x 40-tooth carbide-tipped blade
Laser Guide for extra accuracy
Included Miter Gauge, Push Stick and Arbor Wrenches

Blade Protector

Clear blade guard with riving knife splitter and anti-kickback feature.

Blade Tilt Angle

Your tilt blade is perfect for cuts with 45 degrees.

Arbor Wrenches

Included Miter Gauge, Push Stick and Arbor Wrenches

Dust Collector Port

Integrated 4” Dust Port

Specifications

Technical Information	SC.1100.X

Motor	1 Phase 220V 8A 60Hz 2.5HP 1.8Kw
Max Blade Diameter	10"
Main Blade Arbor	5/8"
Dado Width Capacity	13/16"
Blade Speed	4500 RPM
Main Blade Max cutting Height at 90°	3 1/8" \| 80mm
Main Blade Cutting Height at 45°	2 3/16" \| 55mm
Max Rip Capacity Right	30"
Main Table Dimensions (L X W)	27" x 20"
Table Extensions Left/Right	12" x 27"
Table dimensions	27" x 44"
Floor To Table Height	34 1/4"
Machine Dimensions (L x W x H)	61" x 39" x 41-3/8"
Dust Port	4"
Net Weight	264LB / 120KG
Shipping Weight	282LB / 128KG
Warranty	2 years

Product Documents

Manual

Warranty
