EKKO EP30A Rider Pallet Jack 6600 lbs. Capacity

Product Description

The EKKO EP30A Rider Pallet Jack is designed with the versatility of a pallet jack with full power lifting and driving capabilities. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

Load Capacity 6600lbs.
Fork Size 27x48
Raised Height 9.17"
Lowered Height 3.26"
Curtis Controller
ZF AC Driver Motor
Polyurethane Wheels
Steel Entry Wheels
Ergonomic Handle and Controls
Steel Construction
Robotic Welding
Charger Included
Battery 24V/280Ah Included
3 Years Limited Warranty

About EKKO Lifts

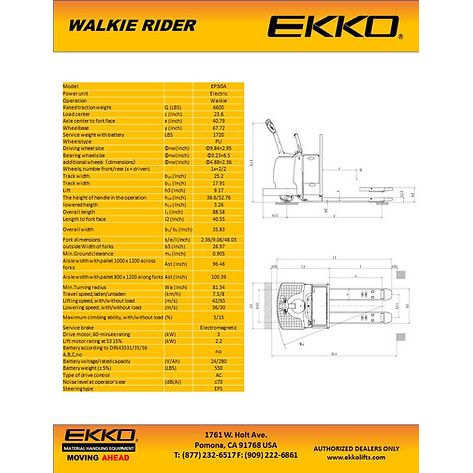

Specification

Model	EP30A
Lift	Electric
Drive	Electric
Load capacity	6600 lbs
Load center	24 in
Wheelbase	67.72 in
Lowered fork height	3.26 in
Lifting height	9.17 in
Overall length	88.58 in
Overall width	35.83 in
Fork size	2/9/48 in
Outside distance of fork	27 in
Turning radius	81.34 in
Lifting speed, laden/unladen	7.5/8 in
Lowering speed, laden/unladen	36/30 in
Max gradient performance laden/unladen	5/15
Brake type	electromagnetic
Drive motor	3000W
Lift motor	2200W
Charger	24V / 30Ah
Battery voltage/rated capacity	24V/280Ah
AC Drive Motor	AC Motor
Noise level at operator sear	70 (dB(A))
Service weight (with battery）	1720 lbs

Product Documents

Product Specs

Product User Manual

Warranty
