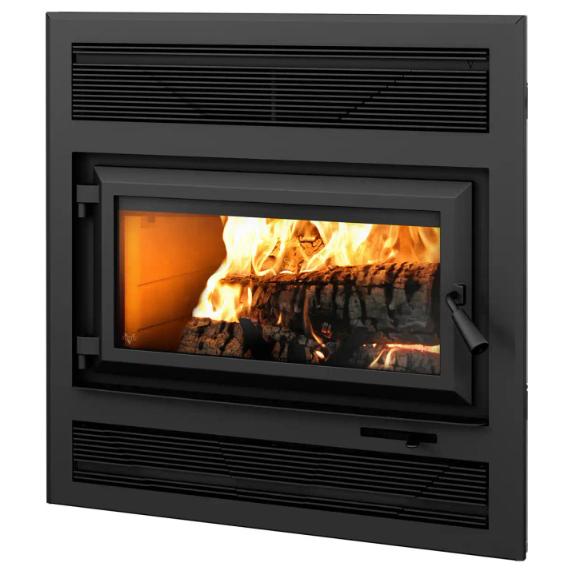

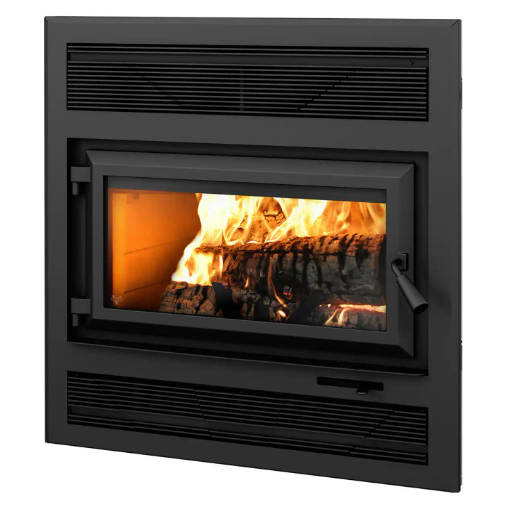

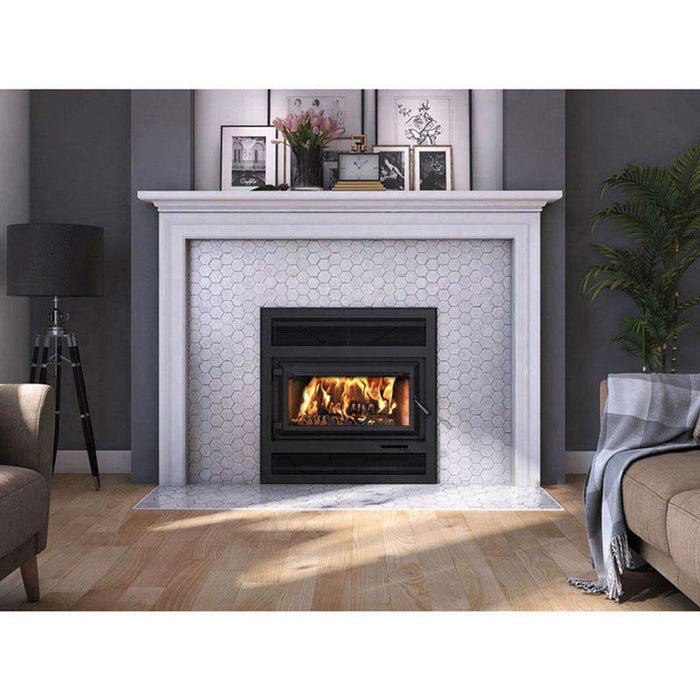

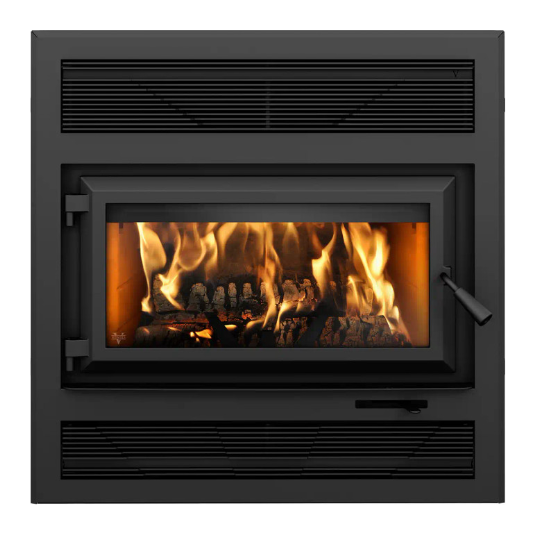

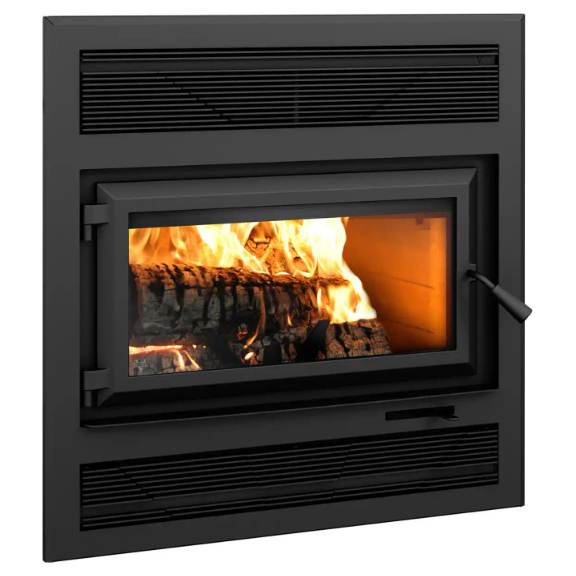

Ventis HE250R ZC Wood Burning Fireplace with Blower -Unit VB00015

Product Description

The Ventis HE250R large sized classic ecological single cast iron door wood burning fireplace is recommended for heating larger spaces from 750 - 2, 200 sq. ft. The firebox is lined with molded refractory bricks for better heat distribution. The HE250R offers non-catalytic combustion technology, and a Stainless-steel secondary-air system which improves gas combustion. This unit has a 8hr Maximum Burn Time, can hold 20" logs, 80,000 BTU/H Max, and is EPA 2020 approved. 6" Ventis Stainless Steel anchor plate & fresh air intake included.

Feature

2.5 cu. ft. firebox
Heating capacity 850 to 2, 200 sq. ft.
Optimum efficiency : 74%
Double C-Cast Baffle
Molded Refractory Bricks
Optimum efficiency : 74%
Emissions: 1.14 g/h
BTU/hr, seasoned cord wood: 80,000
2.5 cu. ft. firebox
Heating capacity 850 to 2, 200 sq. ft.
Optimum efficiency : 74%
Double C-Cast Baffle
Molded Refractory Bricks
Optimum efficiency : 74%
Emissions: 1.14 g/h
BTU/hr, seasoned cord wood: 80,000

Required Option:

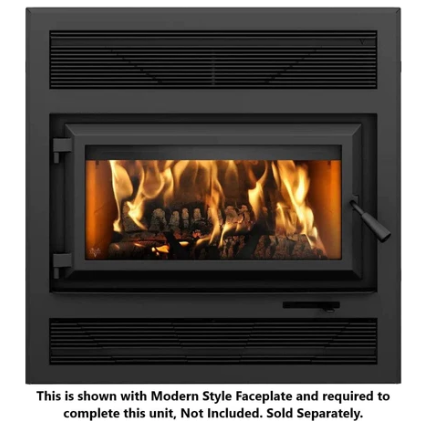

Modern Faceplate (VBA1560)

Appliance Performance

Fuel type	Dry cordwood (16" recommended)
Recommended heating area	750 - 2,200 ft²
Overall firebox volume	2.5 ft³
Maximum burn time	8 Hours
EPA loading volume	1.69 ft³
Maximum heat output-dry cordwood	80,000 BTU/h
Minimum overall heat output rate	14,200 BTU/h (4.16 kW)
Maximum overall heat output rate	48,200 BTU/h (14.13 kW)
Average efficiency-dry cordwood (HHV)	68 %
Average efficiency-dry cordwood (LHV)	73 %
Optimum efficiency	74 %
Optimum heat transfer efficiency	71 %
Average particulate emission rate	1.14 g/h
Average CO	53 g/h

Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
Optimum overall efficiency at a specific burn rate (LHV).
This appliance is officially tested and certified by an independent agency.
The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
As measured per CSA B415.1-10 stack loss method.
Higher Heating Value of the fuel.
Lower Heating Value of the fuel.
The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the solid fuels into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
Carbon monoxyde.

General Features

Premium quality blower included (CFM)	176 CFM included
Certified according to applicable standards	CAN/USA accredited laboratory
Flue outlet diameter	6"
Recommended chimney diameter	6"
Type of chimney	CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height	15"
Overall dimension (Width)	36 3/4"
Overall dimension (Height)	37 1/4"
Overall dimension (Depth)	28 5/8"
Door type	Single, glass with cast iron frame
Door opening size (Width)	25 3/8"
Door opening size (Height)	10 9/16"
Glass type	Ceramic glass
Glass surface - W x H	24" x 10 5/8"
Firebox size (Width)	20 3/8"
Firebox size (Height)	12 1/8"
Firebox size (Depth)	13"
Maximum log length	20"
Log positioning	Loading over width
High-efficiency certified appliance	Yes, EPA 2020 approved
Canadian Standard (safety)	ULC S610
USA Standard (safety)	UL 127
Combustion technology	Non-catalytic
Baffle type	High density insulation board
Stainless-steel secondary-air system	Yes
USA Standard (emissions)	EPA
Canadian Standard (emissions)	CSA B415.1-10
Shipping weight	495 lb (225 kg)

Product Documents

Product Catalogue
Appliance Dimensions
Faceplate Installation Instructions
Installation and Operation Manual
Heatshield Installation Instructions
Fresh Air Intake Adapter Installation Instructions
