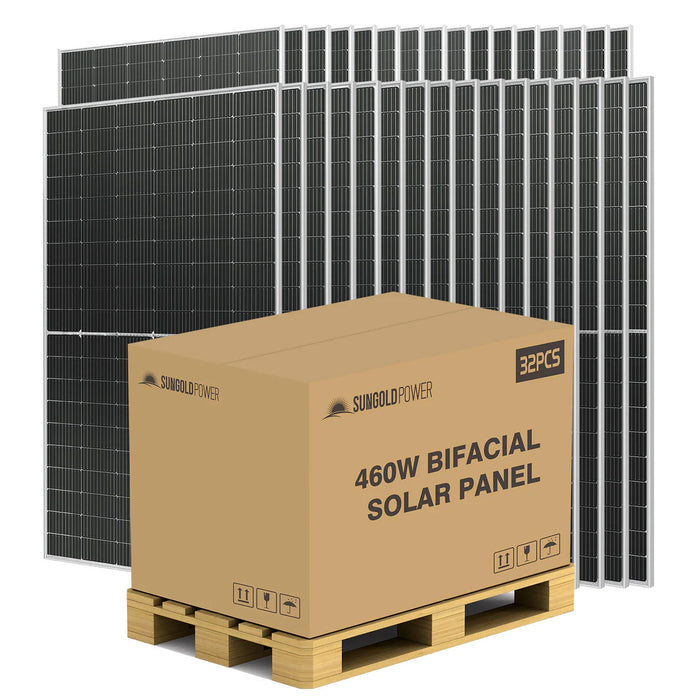

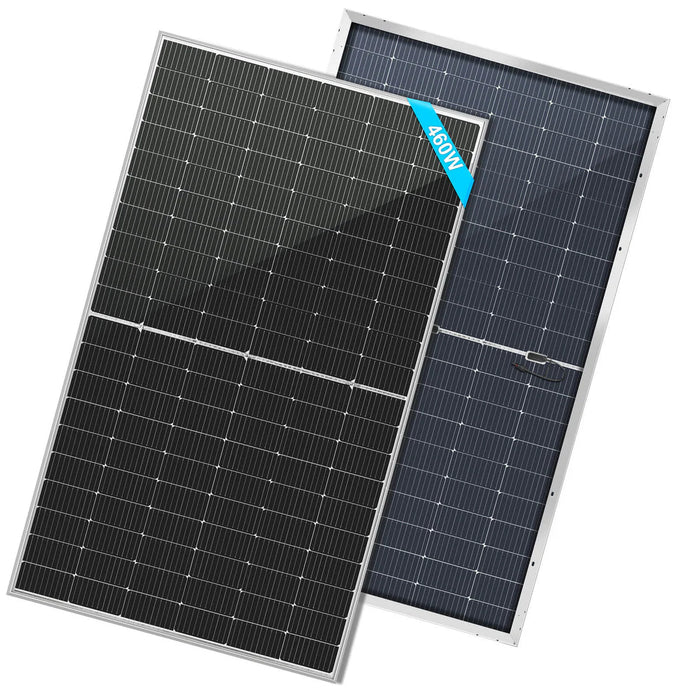

SunGoldPower 460 Watt Bifacial PERC Solar Panel Full Pallet (32 Panels ) SG-460WBG

Product Description

Bifacial monocrystalline PERC solar panel can generate more energy up to 30%
Bifacial modules offer higher durability even rough climatic heat /cold/snow/wind
The space requirement for installation is less because of high efficiency
It can be set up at any angle. No need to analyse or calculate the right mounting and tilt angle.
25 Years Performance warranty and 30% residential Clean Energy Credit.

Features

Sungoldpower Bifacial solar panels are solar panels that can capture sunlight on both their front and back, it can generate up to 30% more energy than conventional solar panels, Bifacial solar panels are ideal for installations where the backside of the solar array is exposed and can capture reflected light, including ground-mount systems, solar carports and canopies.

Improved PV Module Performance under PartialShading Conditions

The panel features an innovative design of PERC, half-cut cells, bypass diodes and 11-busbar
technology to maximize energy output even under partial shading.

Specification

Model Type SG-460WBG
Peak Power (Pmax) 460W
Production tolerance ±3%
Maximum Power Current (Imp) 13.3A
Maximum Power Voltage (Vmp) 34.5V
Short Circuit Current (Isc) 14.13A
Open Circuit Voltage (Voc) 41.75V
Maximum System Voltage 1500V
Wind Resistance 2400Pa
Output Cables 12 AWG (1ft per cable)
Number of Cells 120(6x 20),60 cells in series
Cell Type PERC Monocrystalline (7.2x 3.6 in)
Certifications CE TUV
Product Weight 60.5lbs

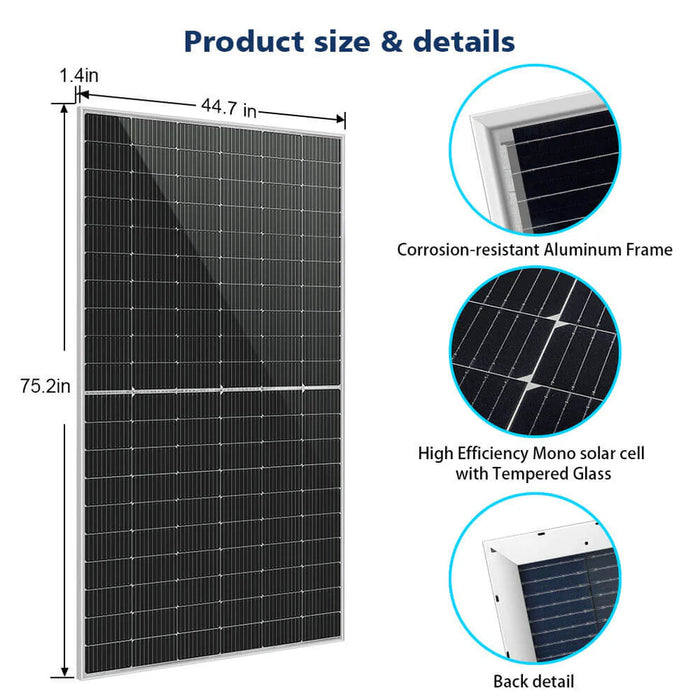

Product Dimension 75.2*44.7*1.4inch
Package Weight 130lbs（2PCS）
Package Dimension 78.5*47.2*3.1inch（2PCS）
Performance 5 year 95% output warranty 10 year 90% output warranty 25 year80% output warranty
Material and workmanship warranty 10 year material and workmanship warranty.UL 61730

Product Documents

User Manual
