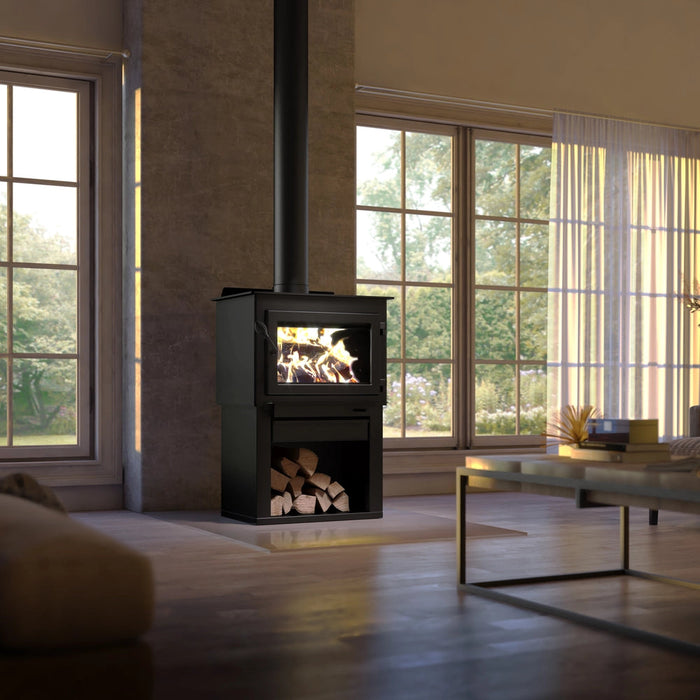

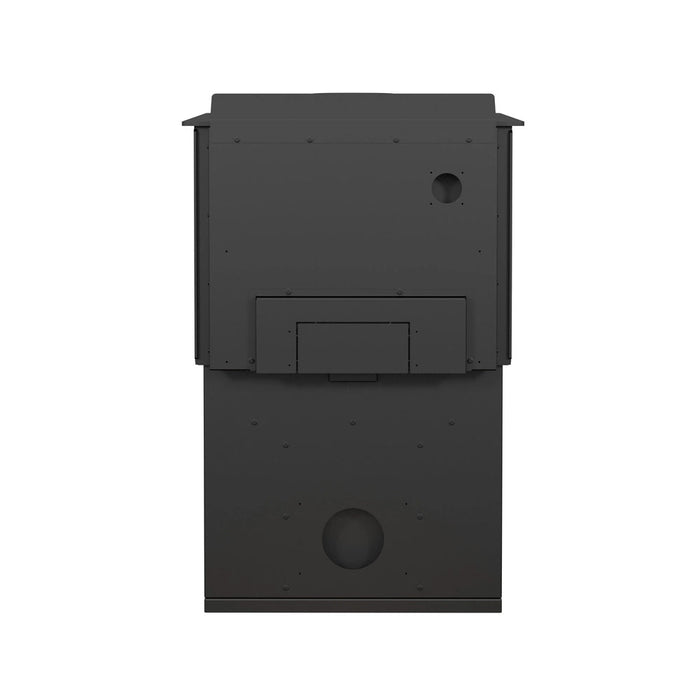

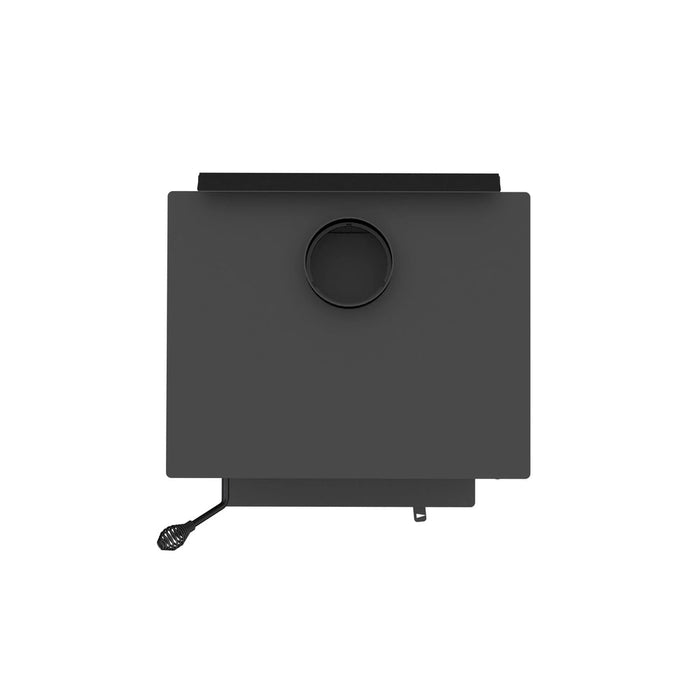

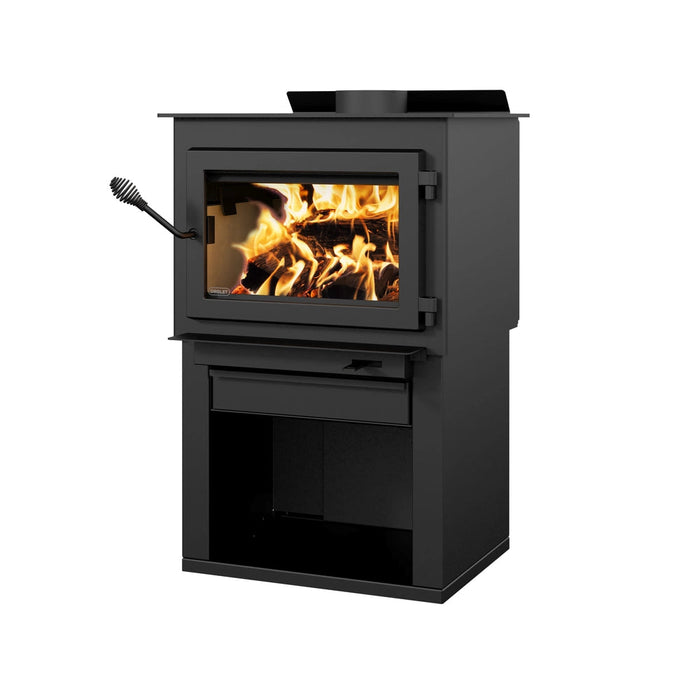

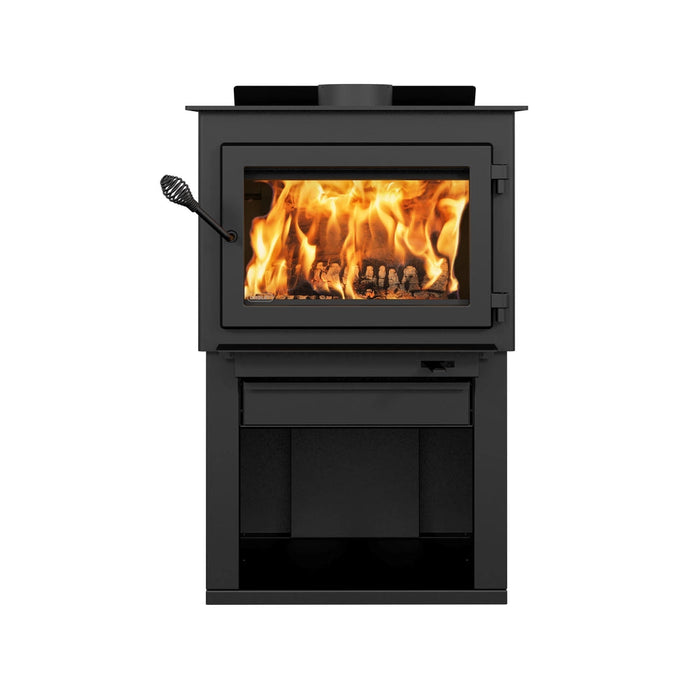

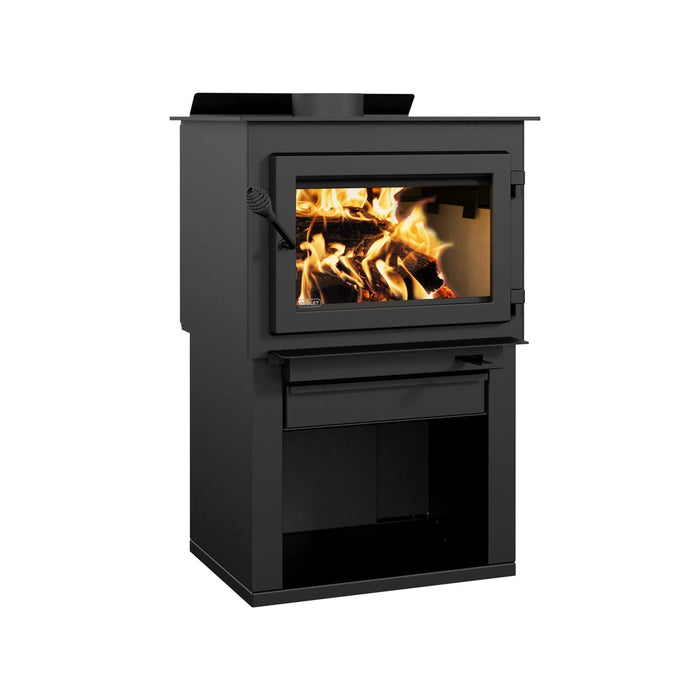

Drolet Deco Alto Wood Stove DB03220

Product Description

A streamlined version of the traditional wood stove, the Deco Alto is ideal for spaces up to 2,100 ft². This large non-catalytic model releases up to 75,000 BTU/h and is certified according to the latest environmental standards. Its clean lines, higher than average height and base with integrated storage space set the Deco Alto apart from other appliances on the market.

Included: pedestal with log storage, rear air deflector, ash lip, ash drawer, air damper

Features

Up to 8 hours burn time
Up to 20" logs
2.4 ft³ firebox
Cast iron door with adjustable hinges and ceramic glass
Heavy duty 5/16" steel top reinforced with a stainless steel heat shield
EPA certified
Proudly made in Canada
Limited lifetime warranty
Certified for mobile home and alcove installation
This model qualifies for the US tax credit

Any installation must be done according to the data and drawings detailed in the owner’s manual.

Appliance performance

Fuel type	Dry cordwood (16" recommended)
Recommended heating area	500 - 2,100 ft²
Overall firebox volume	2.4 ft³
EPA loading volume	1.95 ft³
Maximum burn time	8 h
Maximum heat output-dry cordwood	75,000 BTU/h
Minimum overall heat output rate	14,200 BTU/h (4.16 kW)
Maximum overall heat output rate	44,500 BTU/h (13.04 kW)
Average overall efficiency-dry cordwood (HHV	72 %
Average overall efficiency-dry cordwood (LHV	77 %
Optimum efficiency	79 %
Optimum heat transfer efficiency	76 %
Average particulate emission rate	2.3 g/h
Average CO	69 g/h

General Features

Alcove installation approved	Yes
Mobile home approved	Yes, with fresh air intake
Certified according to applicable standards	By an accredited laboratory (CAN/USA)
Overall dimension (Width)	25 5/8"
Overall dimension (Height)	39 3/4"
Overall dimension (Depth)	26 1/2"
Premium quality blower included (CFM)	Optional
Combustion technology	Non-catalytic
Stainless-steel secondary-air system	Yes
Flue outlet diameter	6"
Distance-center of the flue outlet to back unit	7 3/8"
Distance-center of the flue outlet to side unit	12 7/8"
Recommended chimney diameter	6"
Type of chimney	CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height	12'
Door type	Single, glass with cast iron frame
Door opening size (Width)	17 1/2"
Door opening size (Height)	9"
Glass type	Ceramic glass
Glass surface - W x H	16 3/4" x 10 1/4"
Steel thickness-body	3/16"
Steel thickness-top	5/16"
Firebox size (Width)	21"
Firebox size (Height)	11 7/8"
Firebox size (Depth)	16 1/2"
Log positioning	Loading over width
Maximum log length	20"
Firebox lined with refractory bricks	Yes
Baffle type	High quality vermiculite
High-efficiency certified appliance	Yes, EPA 2020 approved
Canadian Standard (emissions)	CSA B415.1-10
USA Standard (emissions)	EPA
Canadian Standard (safety)	ULC S627
USA Standard (safety)	UL 1482, UL 737
Warranty	Limited lifetime
Shipping weight	390 lb (177 kg)

Clearances

CLEARANCE	SINGLE WALL PIPE	DOUBLE WALL PIPE
Back wall	11"	6"
Corner	12"	12"
Side wall	22"	22"
Base of the unit to ceiling	84"	84"

Product Documents

Wood stove manual | Safety notifications & general information

Installation & Operation Requirements

DImensions
