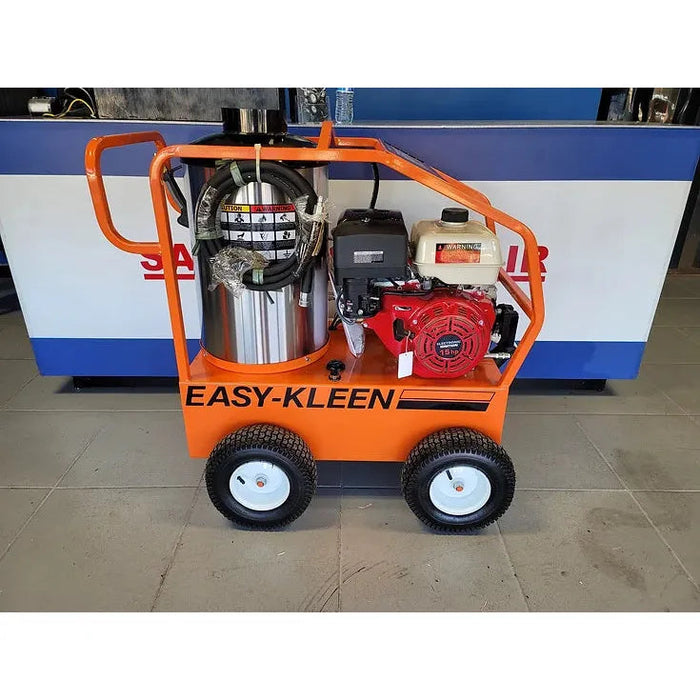

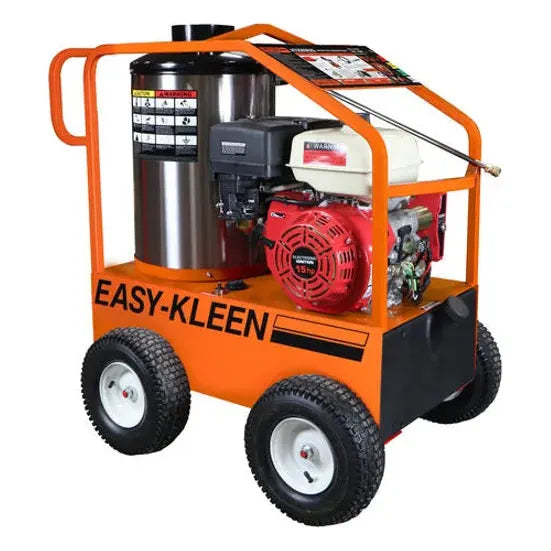

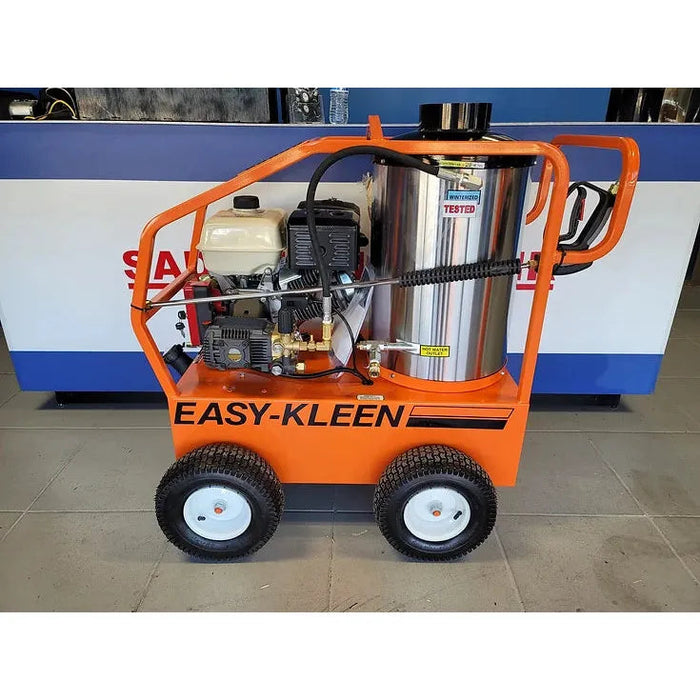

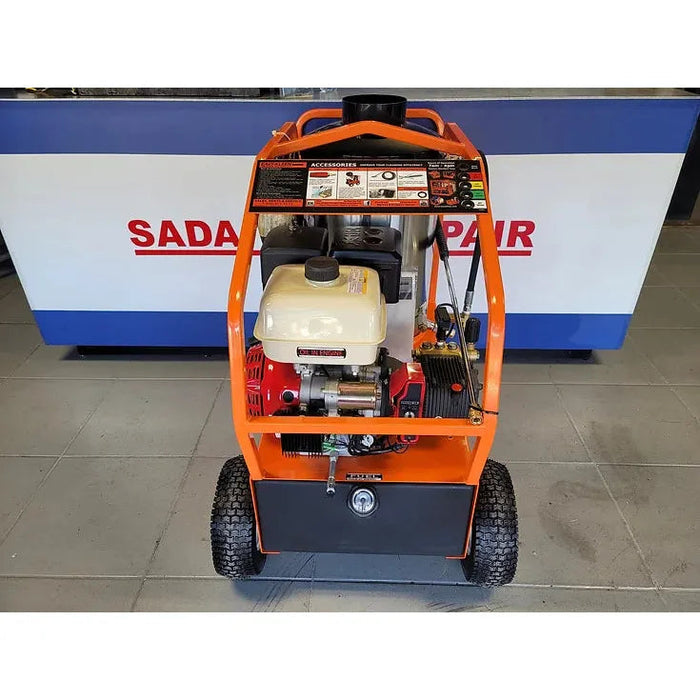

Easy-Kleen Hot Power Washer with Lifan Engine and EK440 Pump 3.5 GPM at 4,000 PSI EZO4035G-L-EK-12

Product Document

Our most popular and versatile units. Utilized by a multitude of businesses for a wide variety of cleaning needs. From a simple oil field application to daily construction and farm use. Our customers continuously comment on the heat and speed of cleaning with these machines.

Features

Commercial Hot Water
3.5 GPM at 4000 PSI

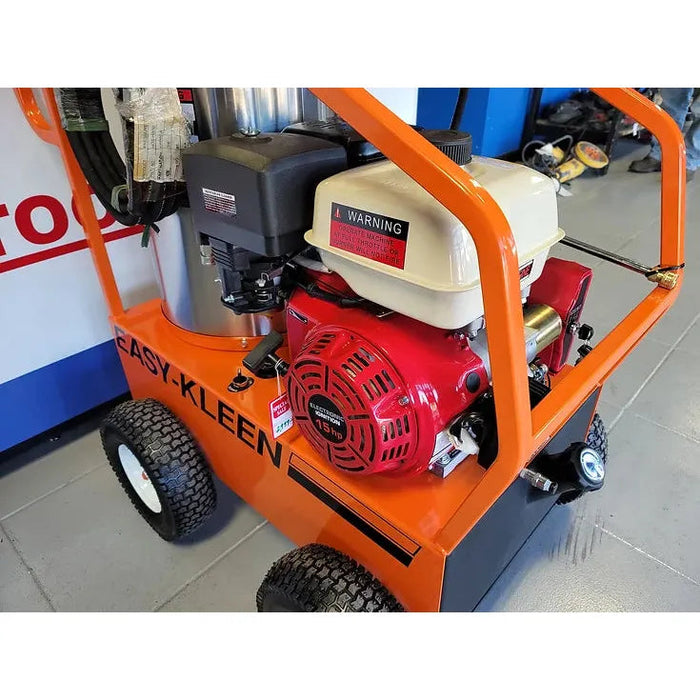

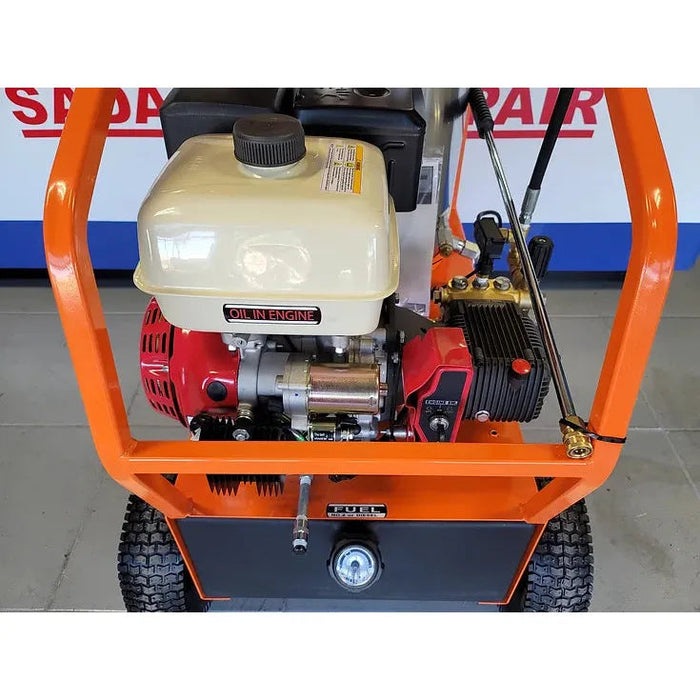

15 HP Lifan Gas Engine
Electric Start
12V Burner
EK440 Pump
Schedule 80 Heating Coil
Powder Coated Portable Frame with 13″ Pneumatic Wheels Attached with Lock Nuts. Dependable
Long lasting machines built for a multitude of applications. Heats water faster & hotter than competitors.

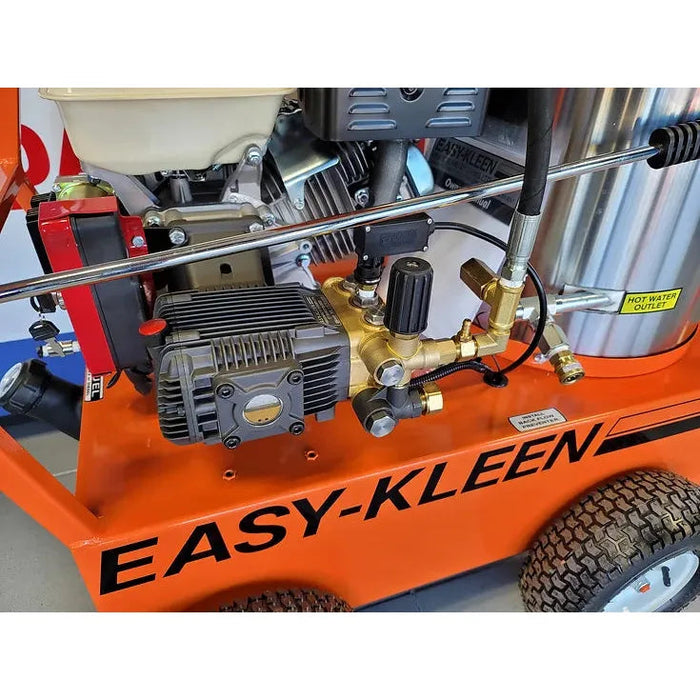

Heavy Duty Triplex Plunger Pump
Inline Serviceable Stainless Steel Mesh Water Filter
Oil Bath Crank Case with dipstick and sight gauge
Stainless Unitized Valves
Forged Brass Manifold
Adjustable Pressure Regulator from 150psi to max
Fully Welded Powder Coated Steel Frame

Heating Coil

Elliptically wound cold process of stretched reduced fully body normalized ASTM A53/APIPSL schedule 80 or optional 160 pipe is structurally braced to minimize pipe wear.
The coil is sealed by a ceramic blanket and enclosed in a stainless steel housing for heating efficiency.
These coils have been specially designed to be paired with the burners maximum heating and fuel efficiency.
The coils are securely mounted to the frames to reduce vibration and enhance ease of maintenance.

Wayne Burners

Quality North American made oil fired burners with adjustable thermostats are used due to their efficiency and durability. Safety features include: flow switch, pressure switch, rupture disc, high limit and adjustable thermostat.

Stainless Steel Housing
Thermostat Controlled
BTU 300,000

Frame

All Welded · Powder Coated
12 Gauge Bent Steel Roll Cage
Lifting Bar
¾ Inch Threaded Axles Welded to the Frame
13 Inch Pneumatic Wheels Attached with Lock Nuts
10 Gallon Poly Fuel Tank
Hose Reel Mounting Plate
Stationary Skid Frame also Available

Includes

Pressure Regulator
36 Inch Trigger Gun and Wand Assembly with Quick Coupler System
0/15/25/40 Nozzles – 50 Feet of High Pressure Hose
Downstream Chemical/Soap Injector
