Tesla, Solar Inverter 7.6kW with Site Controller, 1538000-45-x

The Tesla 7.6kW Solar Inverter (part 1538000-45-x) with Site Controller is a string inverter that converts DC solar power to AC for home use, featuring built-in rapid shutdown and 4 MPPT trackers for up to 98% efficiency. It integrates with the Tesla ecosystem, including Tesla Powerwall and the Tesla app for monitoring.

Key Features & Specifications (1538000-45-x Series):

Power Output: 7.6 kW (7600 Watts) at 240 Volts.
Maximum Power Point Trackers (MPPT): 4 independent trackers for optimal performance.
Efficiency: 98% CEC efficiency (98.6% peak).
Integration: Designed to work natively with the Tesla app, Powerwall, and Wall Connector.
Site Controller Specifics: The -45-x variant includes a factory-installed Neurio meter for revenue-grade metering and necessitates a neutral wire in its AC connection.
Dimensions/Weight: Approximately 26 in x 16 in x 6 in; 52 lbs.
Safety: Integrated arc fault, ground fault, and rapid shutdown protection.
Warranty: 12.5 years.

Installation & Connectivity:

Connectivity: Monitors via Wi-Fi, Ethernet, and cellular.
Interface: Configuration is handled through the Tesla App or a direct browser connection (192.168.92.1).
Required Use: Typically requires a certified installer agreement to purchase.

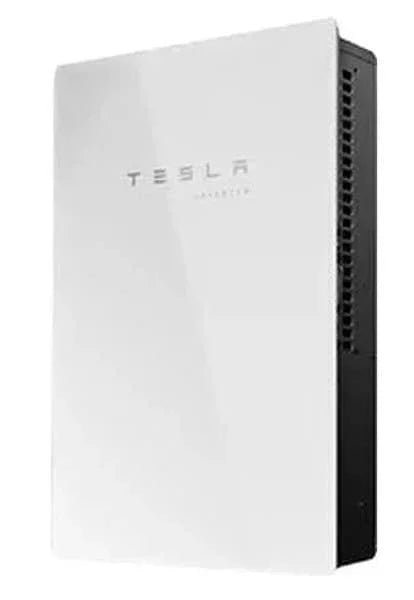

Tesla 1538000-45-x 7.6kW Solar Inverter with Site Controller
