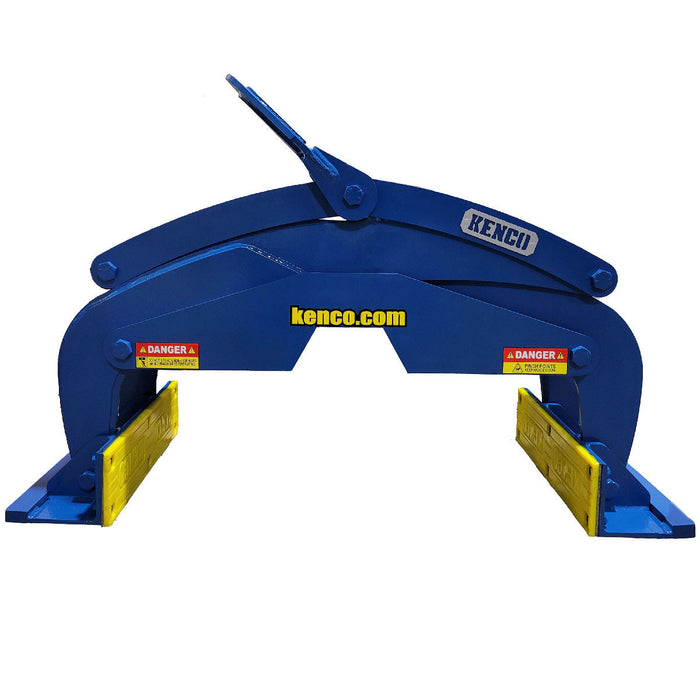

Kenco 24'' to 30'' Bin Block Lift BLK6K24T30

Product Description

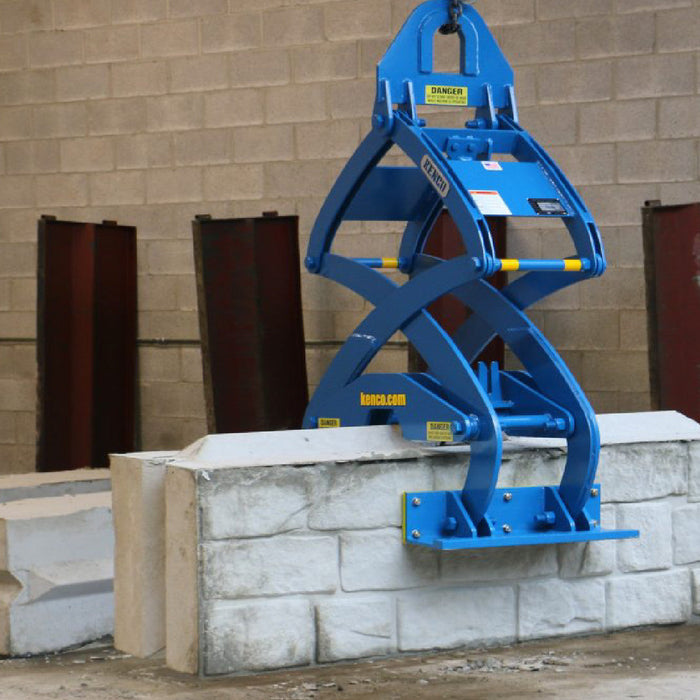

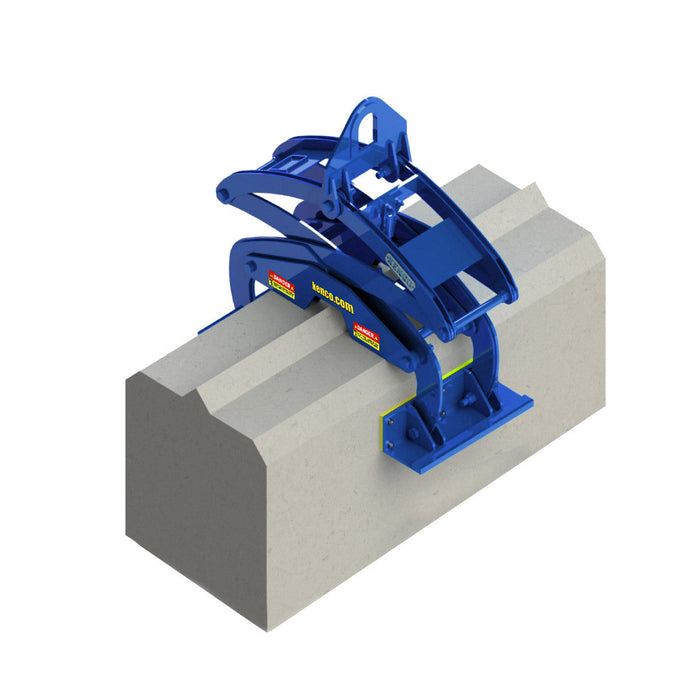

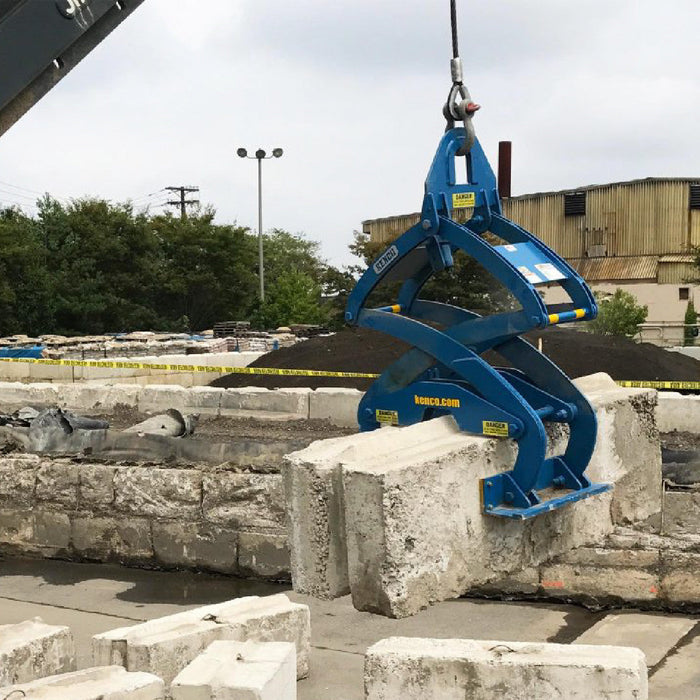

The Kenco BLK6K24T30 Bin Block Lift has a 6,000 lb. capacity with a grip range of 24” to 30” and boasts a unique design that allows the lifter to fit perfectly over the keyway systems molded into precast concrete blocks. These blocks are known by a variety of names including bin block, mafia block, waste block and ecology block. The cut-away portion of this Kenco bin block lifter straddles over the keyway to allow the lifter to rest flat. The operator simply sets the tongs of the BLK6K24T30 Kenco Bin Block Lifter down over the block. The legs automatically grip tightly as the block is raised. Once it is set into place, tension is released on the sling, and the concrete lifting device locks into the open position. It is now ready to repeat the cycle.

Also available in a 9,000 lb capacity for larger blocks.

Specifications

Capacity: 6000 lb
Grip Range: 24 to 30 in
Designed to fit Bin Block
Shipping Dimensions: 52" x 24" x 38"
Shipping Weight: 650 lb

Product Documents

Product Manual

Spec Sheet
