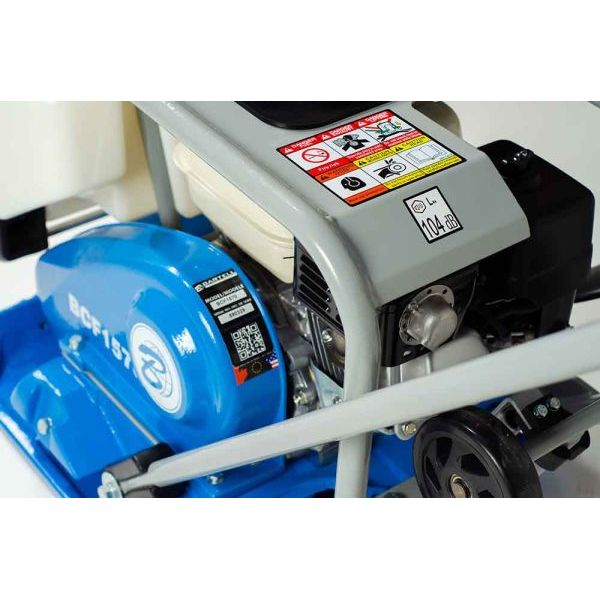

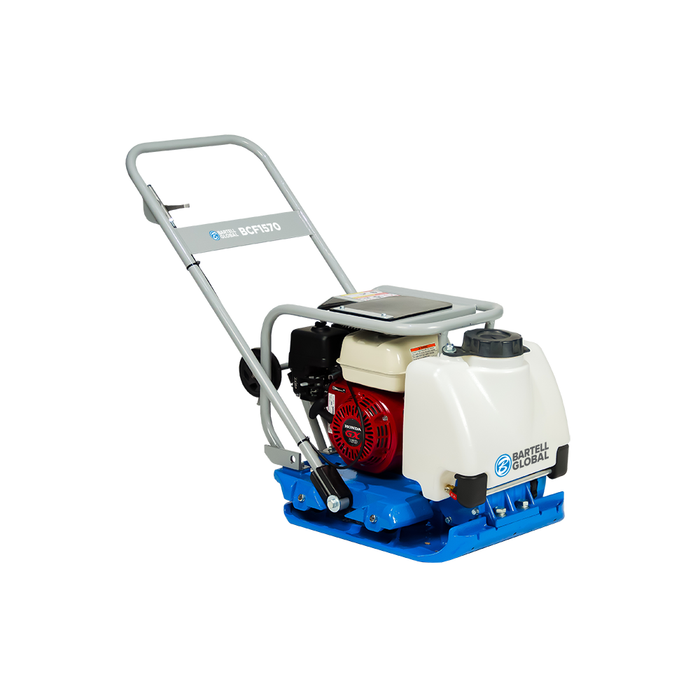

Bartell Global Forward Plate Compactor with Honda GX160 Engine and Water Tank BCF1570

Product Description

Bartell forward plates are innovative, hard-hitting, and low maintenance. The BCF1570 is our most popular forward compactor and is perfect for a wide range of compaction applications. The built-in water tank allows the compactor to be used on asphalt, and also allows for better dust control on dirt/soil.

Features

Robust throttle control mounted on handle for safe and convenient operator control
Anti-vibration handle
Folding handle for compact storage

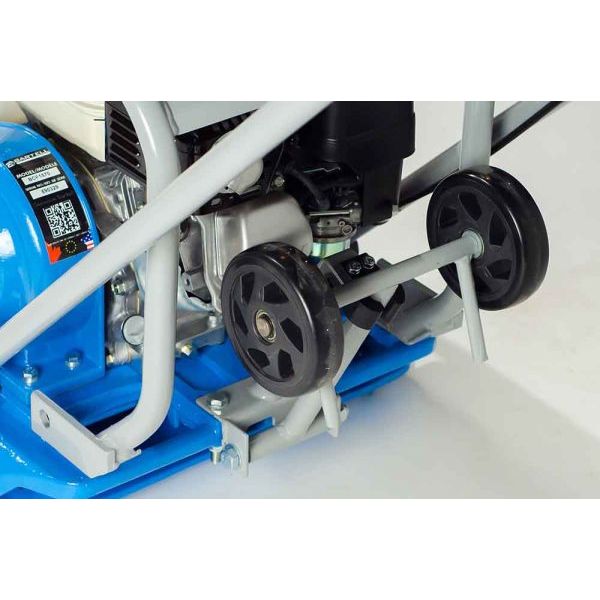

Retractable wheels flip down for built-in mobility
Integrated lifting bale for safe loading and unloading
Straight-edge plate design leaves no unreachable margins

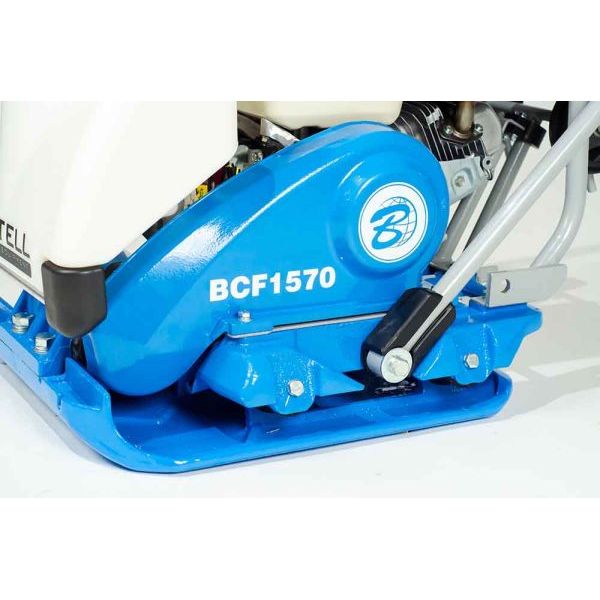

Sealed housing keeps debris from interfering with the belt
Built-in removable water tank
Optional urethane mat protects pavers and slabs from scratches and breakage

Specifications

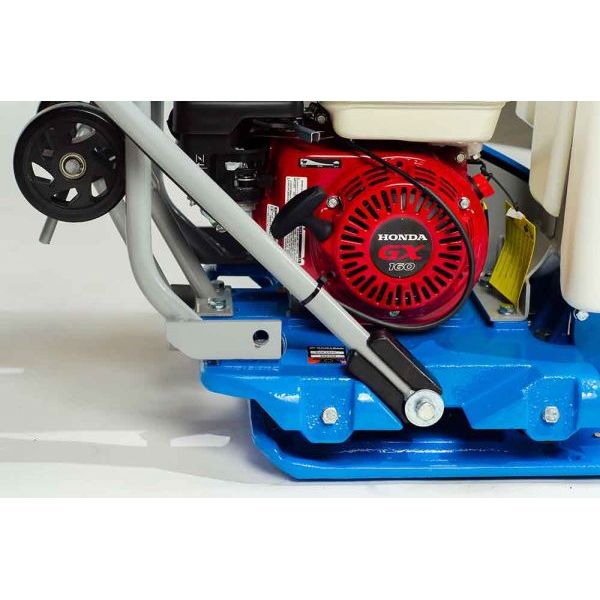

Engine	Honda GX160, 4.8hp (3.6kW)
Compaction Force	3461 lbf, 15 kN,1570 kgf
Max Travel Speed	82'/min (25m/min)
Length	44" (1118mm)
Width	20" (508mm)
Height	33" (838mm)
Weight	217 lbs (98kg)
Plate Size	20" x 21" (500mm x525mm)

Product Documents

Forward Plate Compactor | 4.8HP | Honda GX160 Engine| Bartell Global BCF1570
