Ventis ME300 Wood Burning Fireplace, Zero Clearance VB00001

Product Description

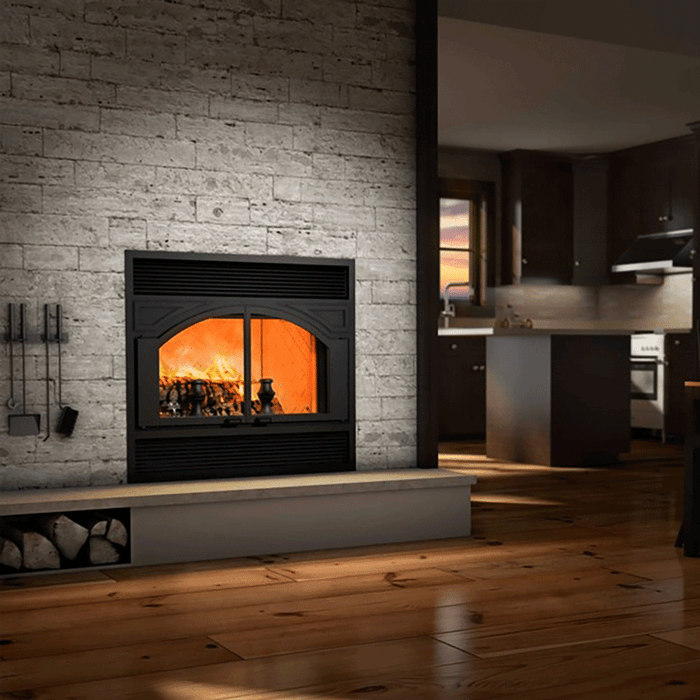

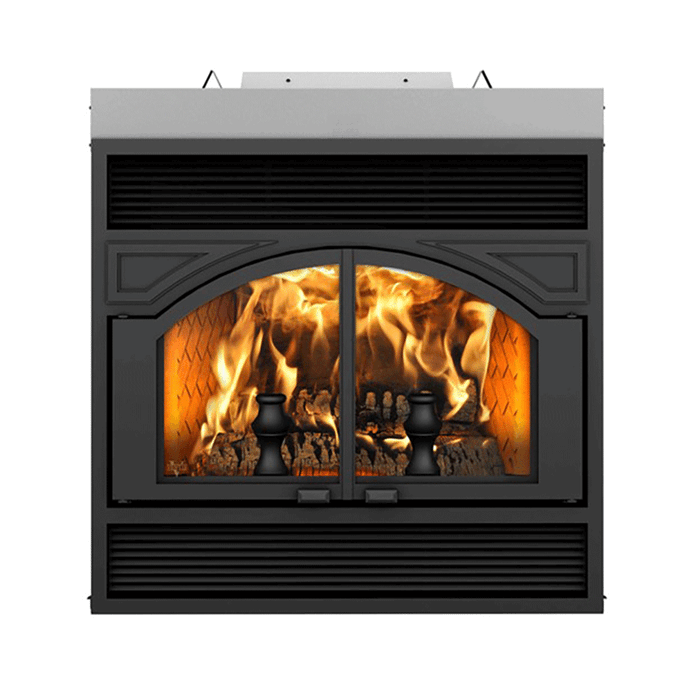

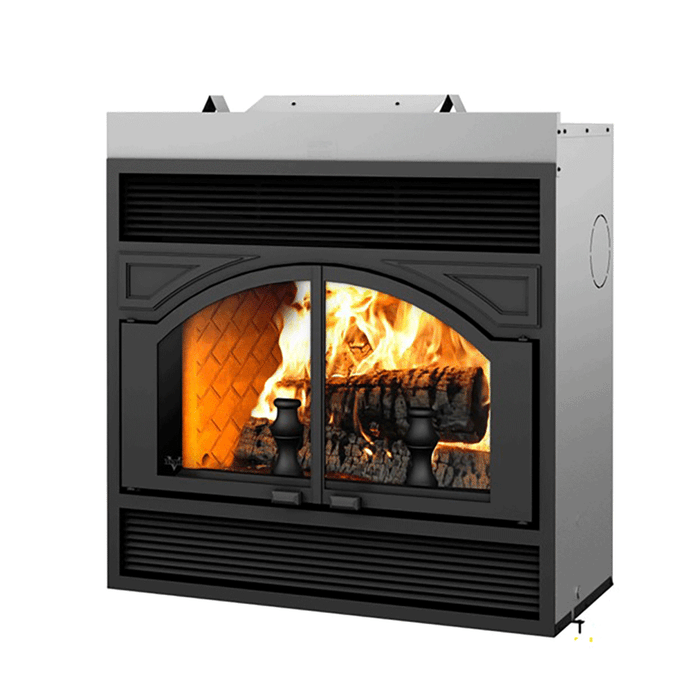

The ME300 fireplace is designed for ambiance. It generates enough heat in the event of a power failure. The unit includes a blower for heat circulation and a firescreen to allow the enjoyment of an open fire.

Feature

Designed mainly for ambiance; incomparable view on the flames
Includes fire screen doors, 8" Ventis stainless steel anchor plate, fresh air intake adapter, and 176 CFM blower
Firebox size: 4.25 sq. ft.
Double-doors made of ceramic glass with cast-iron frame
Heats up to 1,500 sq. ft.
Flue size: 8"
Minimum chimney height from base of fireplace: 15'
Non-catalytic combustion technology

Appliance Performance

Fuel type	Dry cordwood
Recommended heating area	Up to 1,500 ft²
Overall firebox volume	4.25 ft³
Burn rate	> 5 kg/h (> 11 lb/h)
Average particulate emission rate	2.9 g/kg

This appliance is officially tested and certified by an independent agency.
Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.

General Features

Premium quality blower included (CFM)	176 CFM included
Certified according to applicable standards	CAN/USA accredited laboratory
Flue outlet diameter	8"
Recommended chimney diameter	8"
Type of chimney	ULC S604, ULC S629, UL S610, UL 103 HT (2100 °F)
Minimum chimney height	15"
Overall dimension (Width)	41 1/8"
Overall dimension (Height)	43 5/8"
Overall dimension (Depth)	28 1/4"
Door type	Double, glass with cast iron frame
Door opening size (Width)	30"
Door opening size (Height)	16 1/2"
Glass type	Ceramic glass
Glass surface - W x H	28 1/2" x 17 1/8"
Firebox size (Width)	23 1/8"
Firebox size (Height)	18 5/8"
Firebox size (Depth)	11 3/8"
Maximum log length	20"
Log positioning	Loading over width
High-efficiency certified appliance	Exempt
Canadian Standard (safety)	ULC-S610
USA Standard (safety)	UL 127
Shipping weight	511 lb (232 kg)
Combustion technology	Non-catalytic
USA Standard (emissions)	ASTM 2515 / ASTM 2558
Canadian Standard (emissions)	ASTM 2515 / ASTM 2558

Product Documents

Product Catalogue
Appliance Dimensions
Installation and Operation Manual
Fresh Air Intake Adapter Installation Instructions
