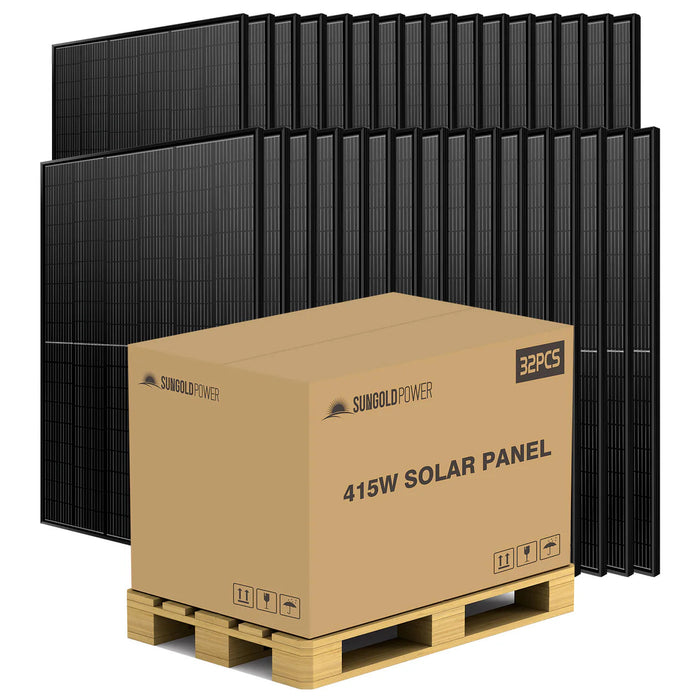

SunGoldPower 415 Watt Mono Black PERC Solar Panel Full Pallet (32 Panels ) SG-415WM

Product Description

High Efficiency Module : This module comes with Mono PERC Half-Cut Technology and has a module efficiency up to 21.25%. SunGoldPower 415W panels provide more output per surface area than most tranditional panels.
High Tolerance: 415W solar panels are made with half-cell technology,it improves the power output and performance of solar modules because they offer a higher shade tolerance due to unique wiring system and number of cells increases.
Widely Use : 415W solar panel is ideal for off-grid,on grid or hybrid solar system,can be an ideal facility used in RV, Tiny House, marine, household power supply, commercial building etc. It helps to save power consumption and save you much more in the long future.
Warranty : the solar panels come with 10 years workmanship warranty and 25-year linear performance warranty,TUV certificated,UL certificated is coming later.UL 61730

Features

Off-grid & On-grid Solution & Hybrid System

This high efficiency PERC Solar panel works for both on-grid /off-grid solar/hybrid solar system, storing
energy with battery, reducing power bills, or powering complete off-grid house.

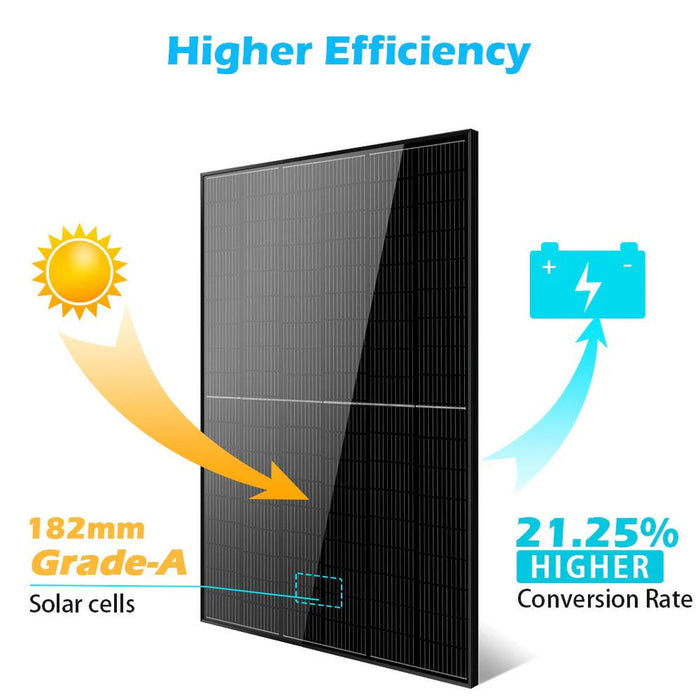

High efficiency

High efficiency monocrystalline PERC module, 182mono half-cells with an all-black design.

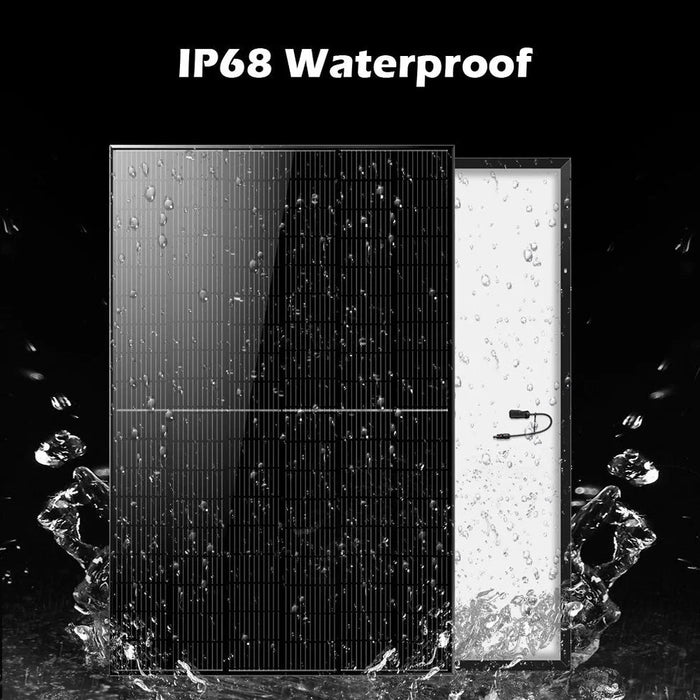

Water Proof

The solar junction box and solar connectors with an IP68 rating is completely protected from dust and will properly functional after Temporary immersion in water (up to 1m deep).

Snow and Wind Protection

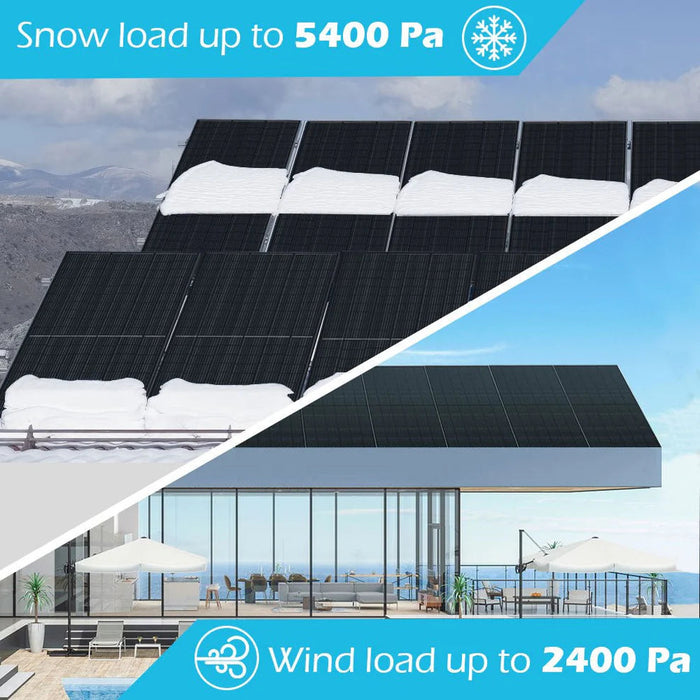

Passed load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure .

Home Solar System

With balanced power, improved stability, and economical electricity costs.

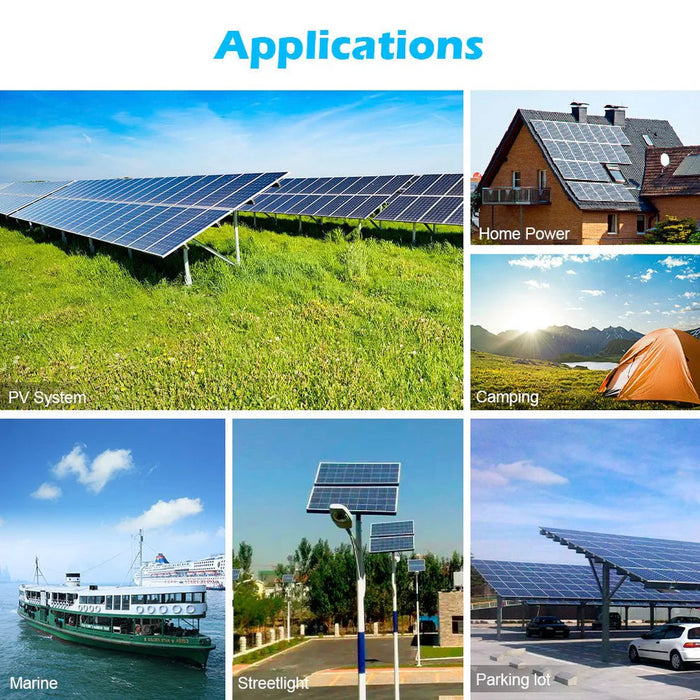

Wide Application

With balanced power, improved stability, and economical electricity costs.

Specification

Model Type SG415WM
Peak Power (Pmax) 415W
Production tolerance ±3%
Maximum Power Current (Imp) 13.13 A
Maximum Power Voltage (Vmp) 31.6V
Short Circuit Current (Isc) 14.02A
Open Circuit Voltage (Voc) 37.50V
Maximum System Voltage 1500V
Wind Resistance 2400Pa
Output Cables 12 AWG (1ft per cable)
Number of Cells 108(6*18)
Cell Type Mono 182*91mm
Certifications UL 61730 CE TUV
Product Weight 45.8lbs

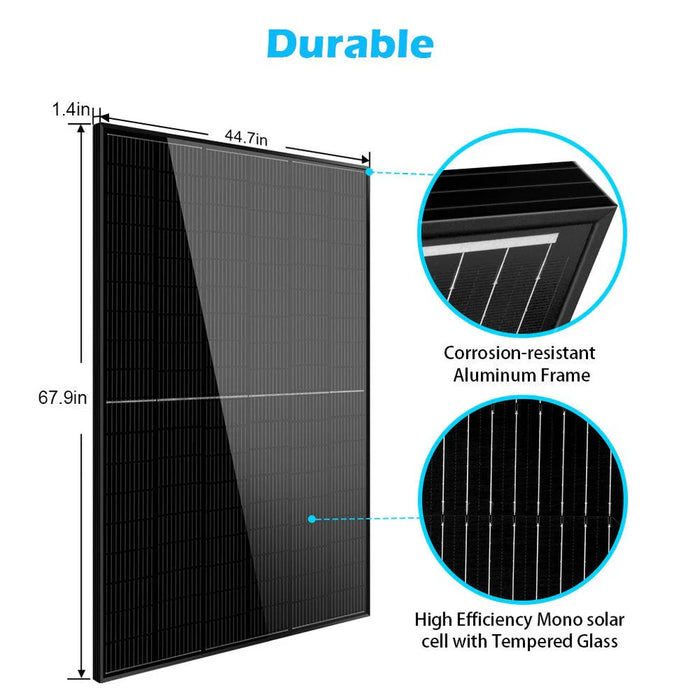

Product Dimension 67.8*44.6*1.4inch
Package Weight 100.5lbs（2PCS）
Package Dimension 70.1*47.2*3.9inch（2PCS）
Performance 5 year 95% output warranty 10 year 90% output warranty 25 year80% output warranty
Material and workmanship warranty 25 years Linear Product Workmanship Warranty and 10 years workmanship warranty

Product Documents

User Manual
