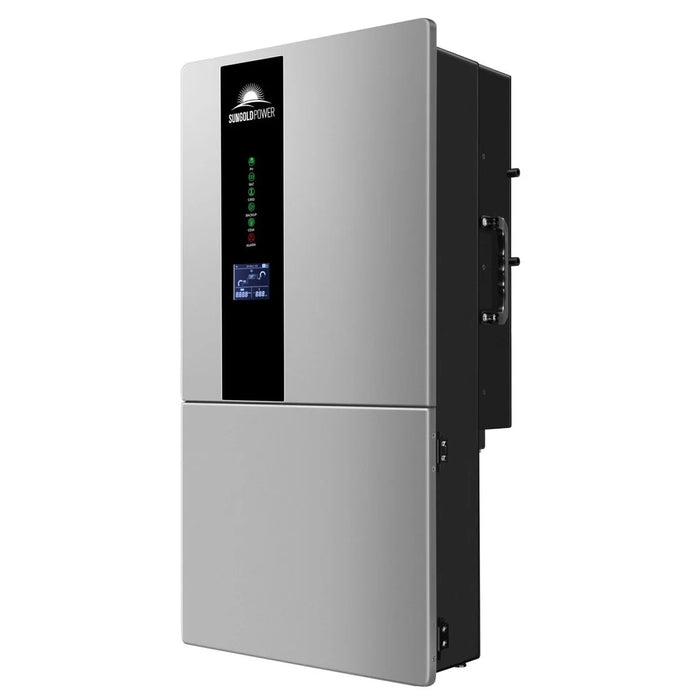

SunGoldPower 11.4KW Hybrid Inverter 48V Split Phase SGN11.4KHB-48

Product Description

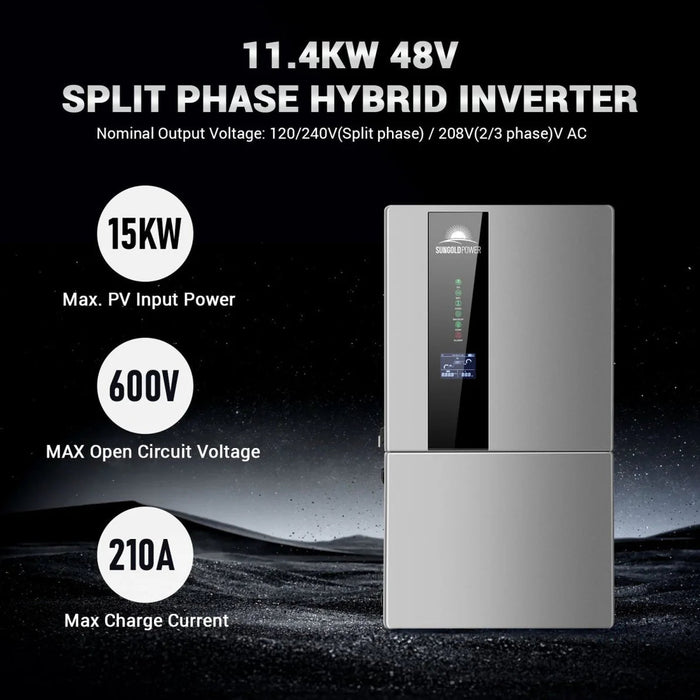

High Solar Input: 3 MPPTs with up to 600V input each, supporting a total solar input of 15kW.

Scalable Power: connect up to 9 inverters in parallel for a 102.6kW system.

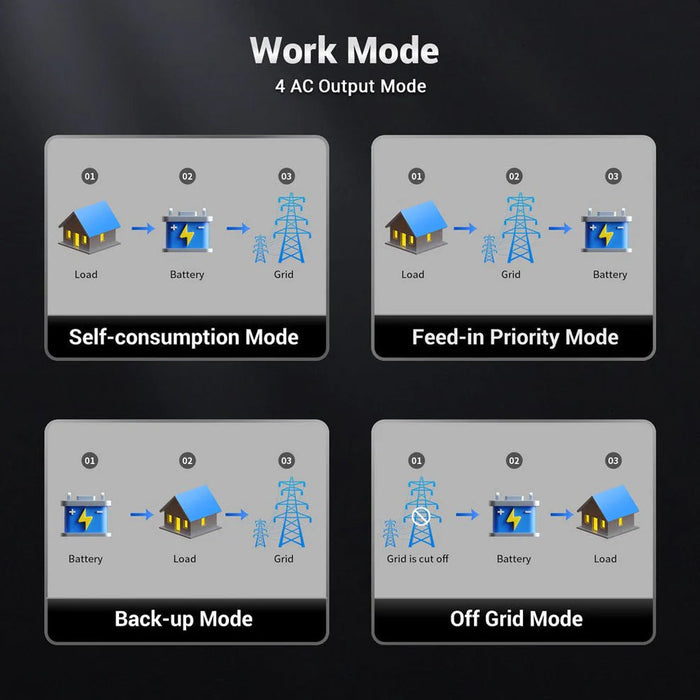

Versatile Functionality: Combines grid-tie, off-grid, and hybrid solar capabilities in one system.

Advanced AC Coupling: integration with grid-tie systems and smart load.

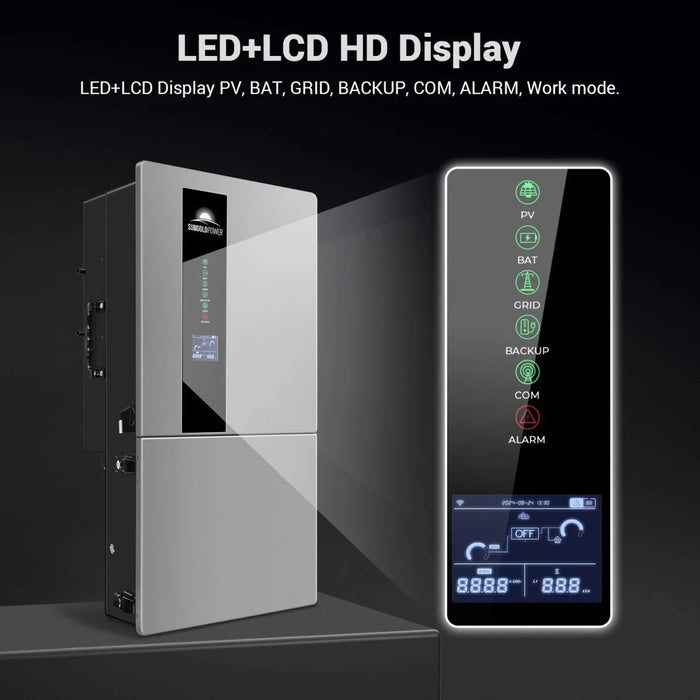

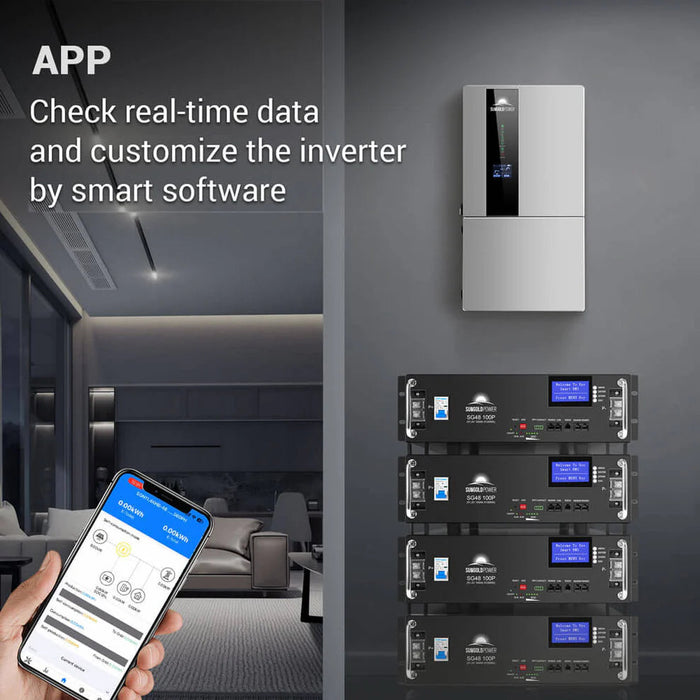

User-Friendly Interface: Monitor and adjust settings via an LCD display or mobile app.

Reliable Backup: Ensure continuous power to critical loads with battery backup when the grid fails.
Durable & Safe: IP65 rated, Wall-mounted design, optional 5 or 10-year warranty.

Certificate : UL 1741/CSA C22.2/UL 1699B UL 1741SB, IEEE 1547:2018, HECO SRD 2.0.

11.4KW 48V Split Phase Hybrid Inverter

This high-quality inverter designed to convert solar energy into AC power, store energy in a battery for future use or feed it into the public grid. With 15KW solar input and 10KW of continuous output (Max 11.4kw),The system offers the flexibility to go off-grid, hybrid solar system, or sell excess energy back to the grid, providing a range of options to suit your energy needs.

Specification

Product Documents

User Manual

Certification
