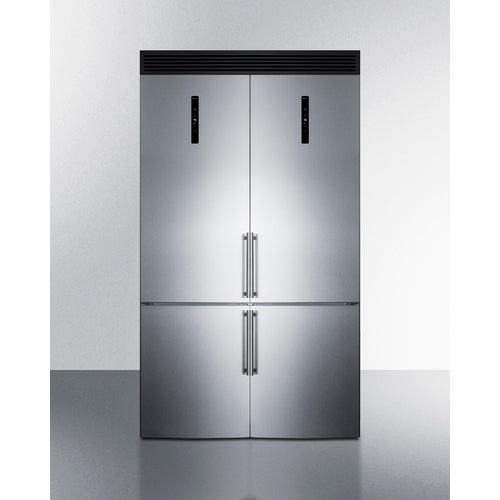

Summit 48" Wide Bottom Freezer Refrigerator Set FFBF181ES2KIT48

Product Description

Bring European luxury to small kitchen spaces with Summit's premium counter depth bottom freezer refrigerators, available now to fill traditional 84" H x 48" W kitchen spaces.

Model FFBF181ES2KIT48 combines two of our ENERGY STAR certified European bottom freezer refrigerators, both sized under 24" deep for an easy fit in shallow spaced kitchens. We ship one unit with a right hand door swing and the other with a left hand door swing, allowing you to create a French door effect for an efficient use of kitchen space. Both units feature stainless steel doors with a gentle curve and pro style handles to complete the look. We include our GRILL48B, a cosmetic top grill in black powder-coated steel to help fill standard 84" high kitchen openings.

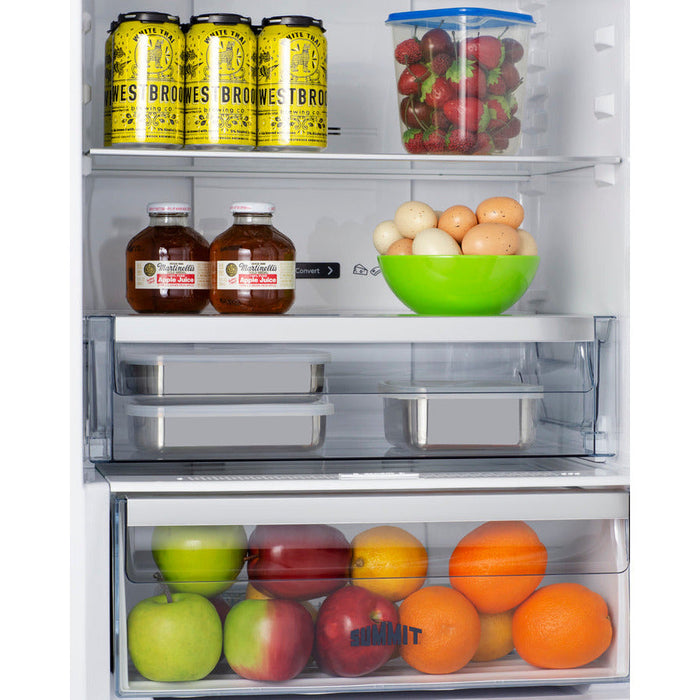

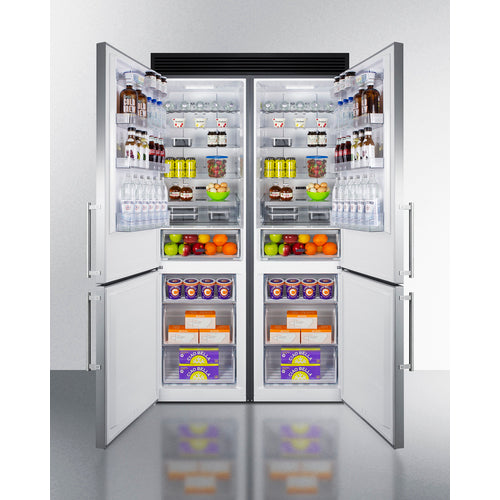

Each unit offers 11.7 cu.ft. of storage capacity to bring the overall interiors to 23.4 cu.ft. The bottom freezers include three slide-out storage drawers with clear plastic fronts, ensuring stored items are protected when the doors are open. The fresh food compartments come fully featured with adjustable glass shelves, scalloped steel bottle racks, removable door storage, large crispers, and a FreshZone deli drawer that can hold colder temperatures for meat or be converted to regular crisper conditions with an easy slide dial. Digital controls ensure easy use for both compartments, with audible temperature and open door alarms to help protect your groceries. This refrigerator is designed with adaptive intelligent technology that adjusts the cooling to your habits based on the frequency of door openings. Additional features include a fast freeze setting (ideal for loading groceries) and an eco setting.

SKU FFBF181ES2KIT48 ships on one pallet with the three pieces (FFBF181ES2, FFBF181ES2LHD, and GRILL48B) individually boxed.

Features

3-'piece refrigerator-freezer set: This set includes Summit's European FFBF181ES2 and FFBF181ES2LHD bottom freezer refrigerators and a decorative top grill (GRILL48B) to fit common 84" H x 48" W spaces
Counter depth fit: Just under 24" deep for an easy fit in smaller kitchens
ENERGY STAR certified: Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs
Stainless steel doors: Professional look in real stainless steel construction with a vertical grain and gentle curve on the doors

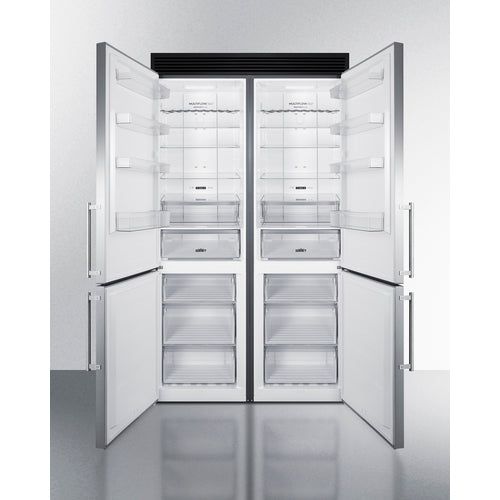

French door swing: This set has one refrigerator with a right hand door swing and the other with a left hand door swing, allowing you to pair side-by-side for a French door swing effect

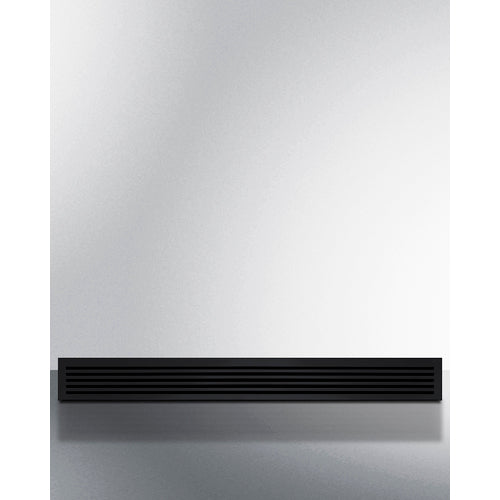

Grill included: Ships with our GRILL48B, a powder-coated decorative grill in jet black to help cover the extra vertical space
Digital thermostats: Separate digital controls let you adjust the refrigerator and freezer sections without opening the door
Adaptive intelligent technology: Innovative sensor technology allows the unit to adjust to your habits, reading your patterns to manage the temperature based on the frequency of door openings and grocery loading
Adjustable glass shelves: Spill-proof safety glass with attractive steel trim ensure durable and easy-to-clean storage that can be rearranged as needed
Adjustable door storage: Four door racks in each refrigerator can be adjusted in height to accommodate a variety of sizes
Bottle shelf: Adjustable scalloped steel racks lets you store wine or other bottles in a space-saving horizontal position
Humidity controlled crispers: Large crisper drawer in each refrigerator allows you to ensure the optimum storage of fruits and vegetables
FreshZone deli drawers: Slide-out drawer allows you to store meats and other deli items at a slightly colder temperature, or convert to a second crisper using the easy slide control
Interior LED refrigerator light: Automatically illuminates when you open the door
3 removable transparent freezer drawers: Unique freezer design keeps the cold inside, even when the door is opened
Open door alarm: Audible and visual alarm will alert if the doors have been left ajar for over 2 minutes
High temperature alarm:Audible and visual alarms will alert if the temperature in the refrigerator or freezer compartment is too high
LED visual alarms: All alarms are both audible and visual, with lamps in the control panel that will illuminate when the alarm is sounded
No-frost operation: Frost-free freezer section and automatic defrost refrigerator offer low maintenance operation
Multi-Flow Fan: Advanced internal fan system helps to ensure even temperature distribution throughout the refrigerator interior
Intensive freezing function: Allows you to rapidly cool the freezer section, ideal for bringing newly loaded groceries to a safer storage temperature
Eco function: Allows you to run the unit at its most efficient settings
Child lock: Temperature controls include a locking function to prevent accidental setting changes
Quiet operation: 32.6 dB for a quiet performance in your kitchen
Sealed back: Space-saving design with no exposed coils for easier cleanability
Large capacity: Over 23 cu.ft. of storage space inside
Ships as one SKU: Individually boxed FFBF181ES2, FFBF181ES2LHD, and GRILL48B ship together on one pallet
100% CFC free: Environmentally friendly design without ozone-damaging chemicals
CARB Compliant: Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Specifications

Height of Cabinet 83.75" (213 cm)
Width 46.75" (119 cm)
Depth 23.75" (60 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 45.38" (115 cm)
Capacity 23.4 cu.ft. (663 L)
Defrost Type Frost-Free/Automatic
Door Stainless Steel
Cabinet Platinum
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.2
Voltage/Frequency 115 V AC/60 Hz
Weight 380.0 lbs. (172 kg)
Shipping Weight 400.0 lbs. (181 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101089430

Refrigerator-Freezer

Door Swing French
Adjustable Shelves Yes
Interior Drawers Yes
Drawer Qty 10
Crisper Qty 4
Crisper Finish Transparent
Crisper Cover Glass
Wine Bottle Shelving Yes
Interior Light Yes
Refrigerator - Interior Height 41.63" (106 cm)
Refrigerator - Interior Width 19.63" (50 cm)
Refrigerator - Interior Depth 17.63" (45 cm)
Refrigerator - Capacity 16.62 cu.ft
Refrigerator - Shelf Type Glass and Scalloped
Refrigerator - Shelf Qty 4
Refrigerator - Full Door Shelves 4
Refrigerator - Temperature Range 34º to 46ºF
Freezer - Interior Height 27.0" (69 cm)
Freezer - Interior Width 17.25" (44 cm)
Freezer - Interior Depth 14.63" (37 cm)
Freezer - Capacity 6.82 cu.ft
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 2.26 oz.
Level Legs 4
Condensor Location Rear of Unit
Freezer - Temperature Range -6º to 6ºF
Compressor Step Height 10.5" (27 cm)
Compressor Step Width 17.25" (44 cm)
Compressor Step Depth 5.38" (14 cm)
Sound Level 32.6 dB

Weight and Dimension

83.75" H x 46.75" W x 23.75" D

Product Documents

Brochure

Assembly Drawing

Energy Guide
