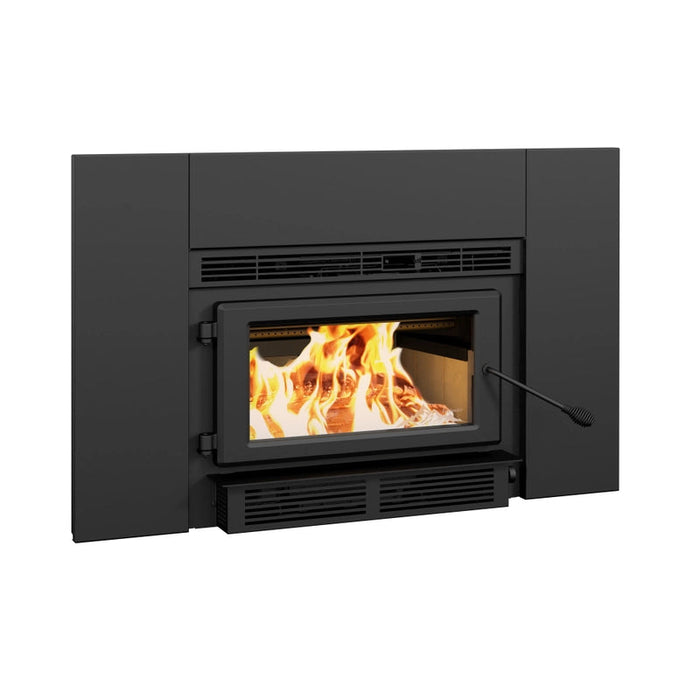

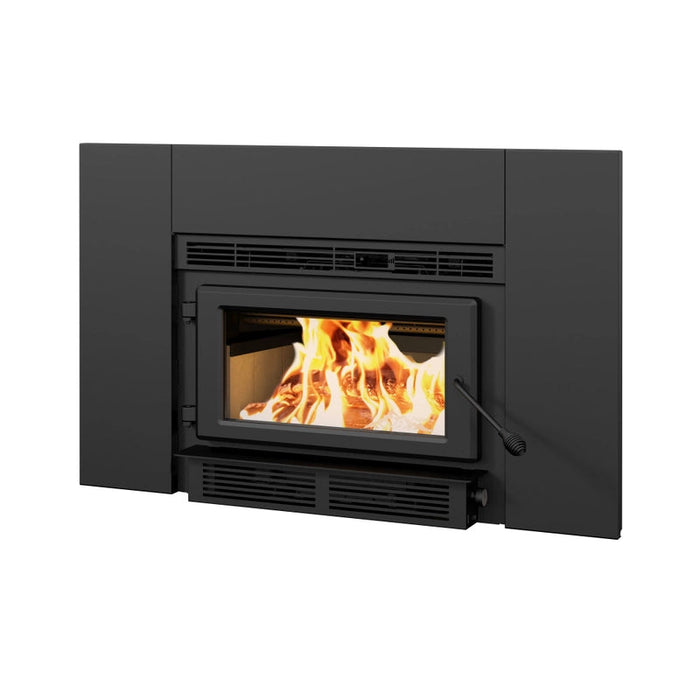

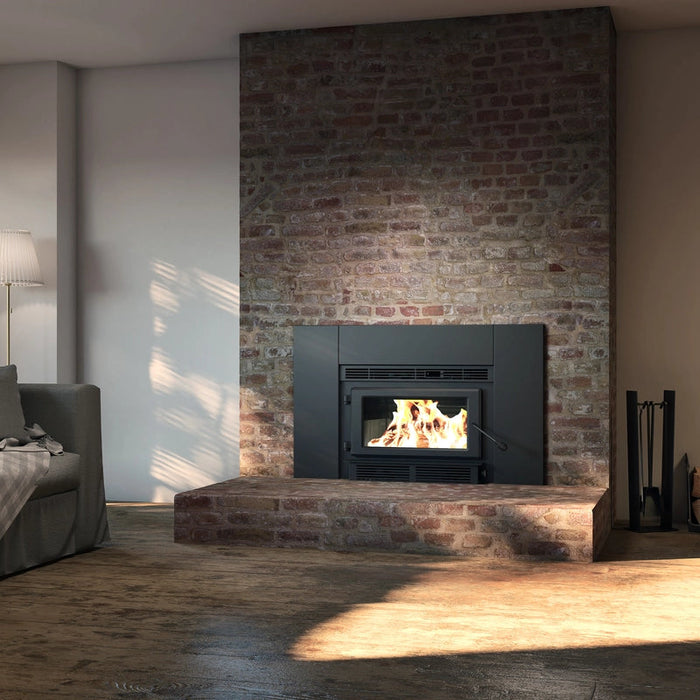

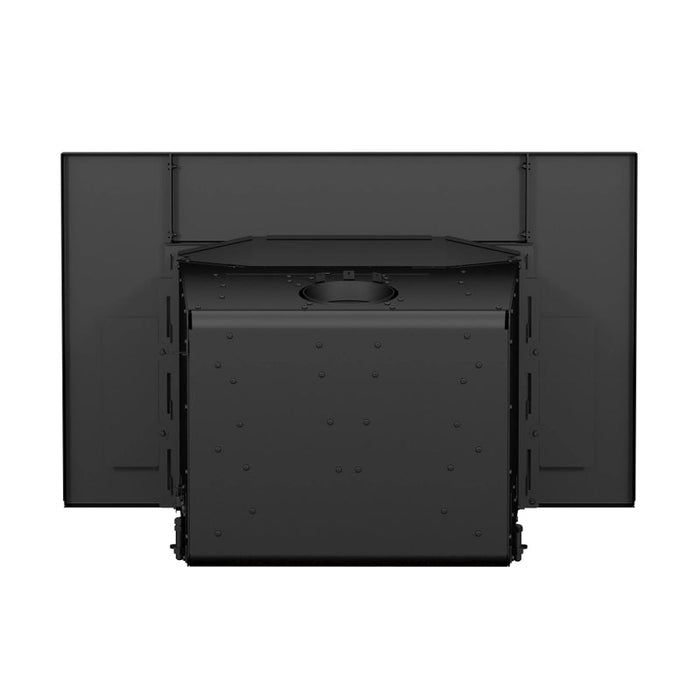

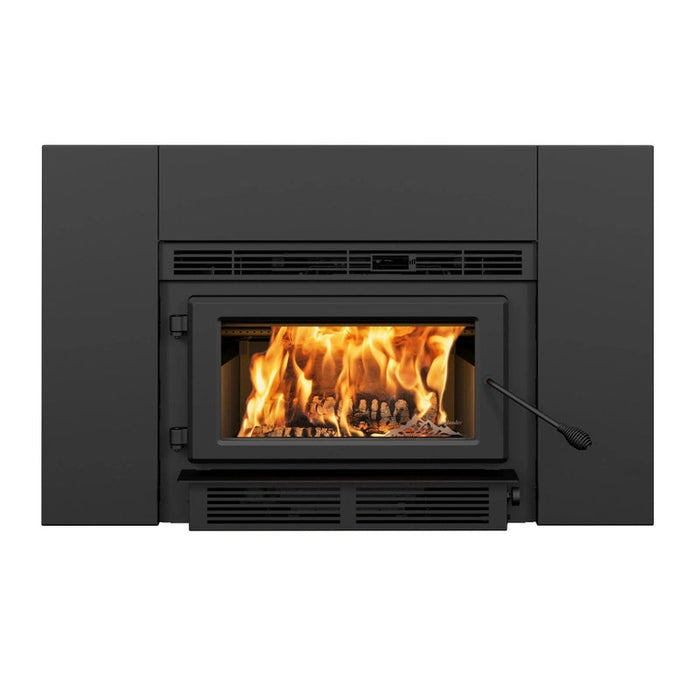

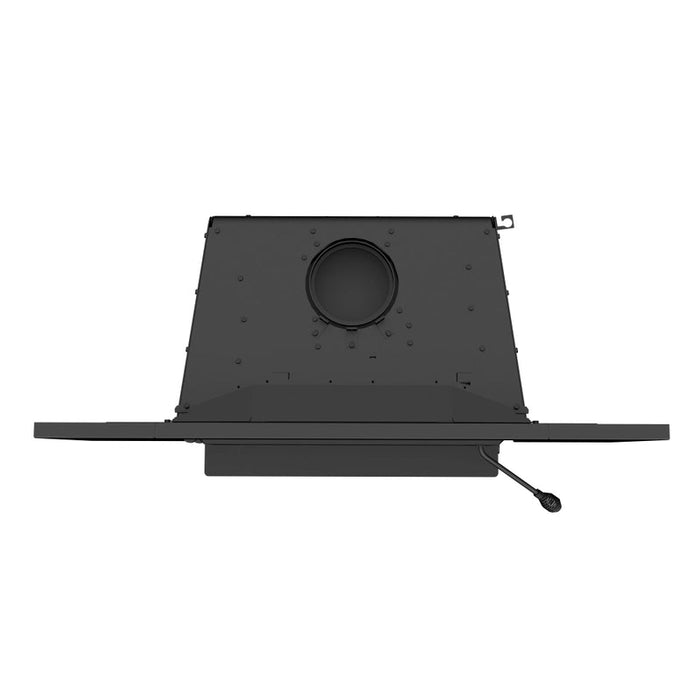

England's Stove Work Blue Ridge 150-I Fireplace Insert ESW0006

High efficiency 1.1 ft³ firebox
Up to 7 hours burn time
Lightweight steel faceplate with hooks that snap onto the front of the unit
Steel top reinforced with a stainless steel heat shield
Cast iron door and ceramic glass
EPA certified
Proudly made in USA
Non-catalytic combustion system
Qualifies for the 30% US tax credit
Included: 26" x 42" faceplate, air intake damper and 90 CFM blower with thermodisc

Fuel type	Dry cordwood
Recommended heating area	250 - 1,200 ft²
Overall firebox volume	1.1 ft³
EPA loading volume	1.03 ft³
Maximum burn time	7 h
Maximum heat output-dry cordwood	45,000 BTU/h
Minimum overall heat output rate	8,471 BTU/h (2.48 kW)
Maximum overall heat output rate	31,700 BTU/h (9.29 kW)
Average overall efficiency-dry cordwood (HHV	75%
Average overall efficiency-dry cordwood (LHV	80%
Optimum efficiency	82%
Optimum heat transfer efficiency	78%
Average particulate emission rate	1.5 g/h
Average CO	34 g/h

Mobile home approved	No
Premium quality blower included (CFM)	90 CFM included
Certified according to applicable standards	CAN/USA accredited laboratory
Combustion technology	Non-catalytic
Stainless-steel secondary-air system	Yes
Flue outlet diameter	6"
Distance-center of the flue outlet to back unit	5"
Distance-center of the flue outlet to side unit	10 3/8"
Recommended chimney diameter	6"
Type of chimney	ULC-S635, CAN/ULC-S640, UL 1777
Minimum chimney height	12"
Overall dimension (Width)	27 7/8"
Overall dimension (Height)	20 1/8"
Overall dimension (Depth)	21 7/8"
Door type	Single, glass with cast iron frame
Door opening size (Width)	18 1/4"
Door opening size (Height)	7 7/8"
Glass type	Ceramic glass
Glass surface - W x H	17 3/8" x 8 1/8"
Steel thickness-body	3/16"
Steel thickness-top	3/16"
Firebox size (Width)	16 3/8"
Firebox size (Height)	8 3/4"
Firebox size (Depth)	12 3/8"
Maximum log length	17" (16" recommended)
Log positioning	Loading over width
Firebox lined with refractory bricks	Yes
Baffle type	Vermiculite
Minimum fireplace opening (Width)	25"
Minimum fireplace opening (Height)	19"
Minimum fireplace opening (Depth)	15 1/2"
High-efficiency certified appliance	Yes, EPA 2020 approved
Canadian Standard (emissions)	CSA B415.1-10
USA Standard (emissions)	EPA
Canadian Standard (safety)	ULC S628
USA Standard (safety)	UL 1482, UL 737
Warranty	Limited 5 years
Shipping weight	295 lb (134 kg)
Minimum fireplace opening (Height at the back)	17 1/4"
Minimum fireplace opening (Width at the back)	21 1/2"

CLEARANCE	SINGLE WALL PIPE	DOUBLE WALL PIPE
Base of the unit to ceiling	16"	72"
