Drolet Escape 1800-I Wood Insert with Trio 35'' DB03128K

Product Description

Ideal for heating up to 2,100 ft², the Escape 1800 is the ultimate versatile wood insert! With only 1.54 g/h of particulate emissions, this non-catalytic appliance gives off up to 75,000 BTU/h. The Escape 1800 is the perfect choice to update your masonry fireplace and make it efficient!

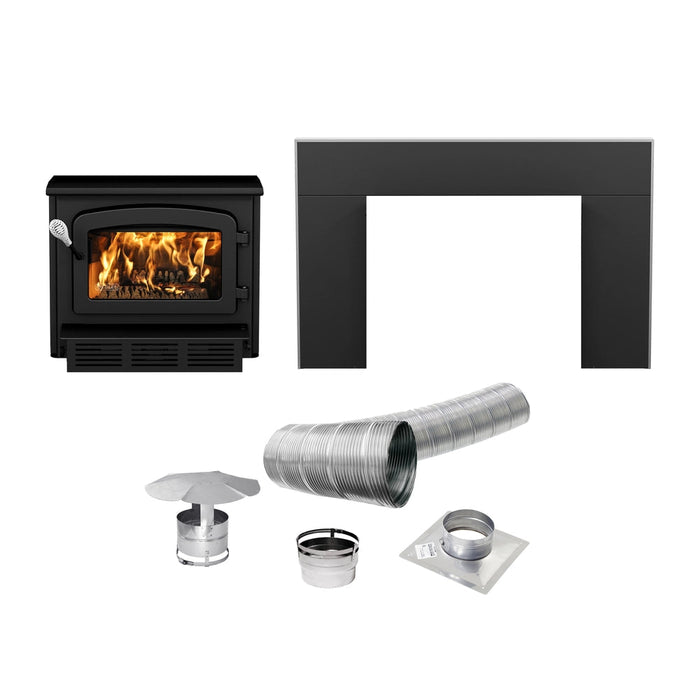

Included: 6" liner kit (35' Vortex flexible stainless steel liner, connector, 13" x 13" top plate, chimney cap with no screen), 32" x 50" faceplate with brushed nickel trim, blower, ceramic glass, ash lip, air damper

Burn time up to 8 hours
Up to 20" logs
2.4 ft³ firebox
Robust 5/16" steel reinforced with a stainless steel heat shield
EPA certified
Proudly made in Canada
Limited lifetime warranty
This model qualifies for the US tax credit

Any installation must be done according to the data and drawings detailed in the owner’s manual.

Appliance performance

Fuel type	Dry cordwood (16" recommended)
Recommended heating area	500 - 2,100 ft²
Overall firebox volume	2.4 ft³
EPA loading volume	1.95 ft³
Maximum burn time	8 h
Maximum heat output-dry cordwood	75,000 BTU/h (22.0 kW)
Minimum overall heat output rate	14,200 BTU/h (4.16 kW)
Maximum overall heat output rate	44,500 BTU/h (13.04 kW)
Average overall efficiency-dry cordwood (HHV)	72 %
Average overall efficiency-dry cordwood (LHV)	77 %
Optimum efficiency	79 %
Optimum heat transfer efficiency	76 %
Average particulate emission rate	2.3 g/h
Average CO	69 g/h

General features

Premium quality blower included (CFM)	144 PCM inclus
Certified according to applicable standards	By an accredited laboratory (CAN/USA)
Combustion technology	Non-catalytic
Stainless-steel secondary-air system	Yes
Flue outlet diameter	6"
Distance-center of the flue outlet to back unit	6 7/8"
Distance-center of the flue outlet to side unit	13 1/2"
Recommended chimney diameter	6"
Type of chimney	Liner - ULC-S635, CAN/ULC-S640, UL1777
Minimum chimney height	12'
Overall dimension (Width)	28 3/8"
Overall dimension (Height)	23 1/8"
Overall dimension (Depth)	26 3/8"
Door type	Single, glass with cast iron frame
Door opening size (Width)	17 1/2"
Door opening size (Height)	9"
Glass type	Ceramic glass
Glass surface - W x H	16" x 9 1/4"
Steel thickness-body	3/16"
Steel thickness-top	5/16"
Firebox size (Width)	21"
Firebox size (Height)	11 7/8"
Firebox size (Depth)	16 1/2"
Maximum log length	20"
Log positioning	Loading over width
Firebox lined with refractory bricks	Yes
Baffle type	High quality vermiculite
Minimum fireplace opening (Width)	28 7/8"
Minimum fireplace opening (Height)	23 3/8"
Minimum fireplace opening (Depth)	15 3/4"
High-efficiency certified appliance	Yes, EPA 2020 approved
Canadian Standard (emissions)	CSA B415.1-10
USA Standard (emissions)	EPA / ASTM WK47329
Canadian Standard (safety)	ULC S628
USA Standard (safety)	UL 1482, UL 737
Warranty	Limited lifetime
Shipping weight	500 lb (227 kg)
Approved as add-on to an existing furnace	No

Clearances

CLEARANCE	SINGLE WALL PIPE	DOUBLE WALL PIPE
Base of the unit to ceiling	16"	84"
